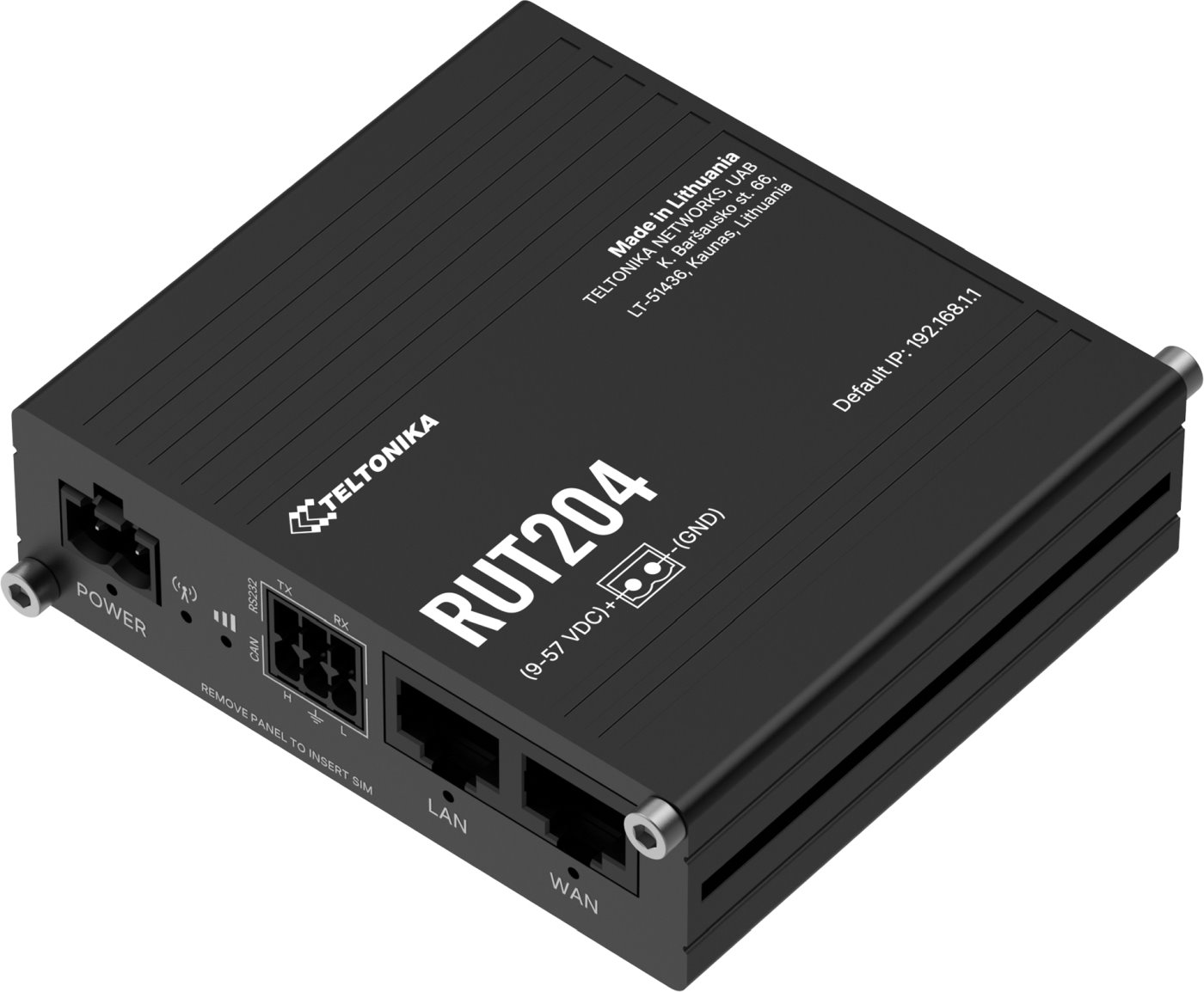

Teltonika RUT204 Industrial 4G LTE Wi-Fi Router, RS232, GPS

The compact industrial mobile 4G LTE Gateway Router is designed for challenging environments of industrial applications using serial ports. It offers reliable connectivity thanks to the integrated 4G LTE modem (category 4), 2.4 GHz Wi-Fi, 2x SIM with automatic switching, serial port RS-232 (terminal block) and GPS. It is equipped with LAN and WAN ports, allowing flexible connectivity and support for WAN failover for backup connections in case of an outage. With remote management via RMS and extensive VPN options, it is the ideal solution for secure and efficient communication in industrial systems.

Key Features

• Mobile 4G/LTE connection (Cat 4 - 150 / 50 Mbps), 3G and 2G
• (2) SMA female (LTE) + (1) RSMA female (Wi-Fi) + (1) SMA female (GNSS)
• GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS
• Wi-Fi: 802.11b/g/n, speed 150 Mbps
• 10/100 Mbps LAN + 10/100 Mbps WAN
• (2) mini SIM slot (2FF format), automatic switching
• Serial RS-232 (via terminal block)
• Power via DC terminal block (9 - 57 V DC) and PoE (9 - 50 V DC and 802.3af/at)
• Remote management RMS and extensive VPN options

Package Contents

• Device
• 2-pin terminal block
• (2) 3-pin terminal blocks
• Ethernet cable 1.5 m
• Allen key
• SIM adapter kit
