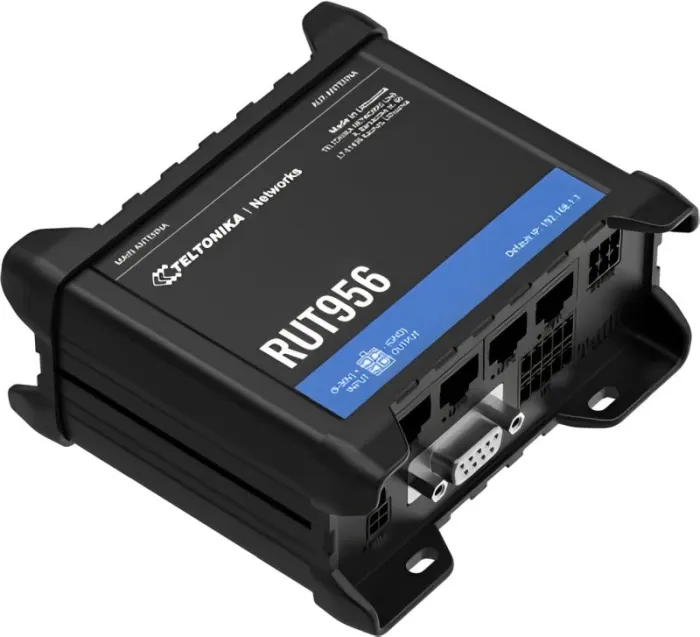

Teltonika RUT956 Industrial cellular LTE Wi-Fi Router, RS232 and RS485, GPS

The compact industrial mobile router is designed for demanding environments of industrial applications. It offers reliable connectivity thanks to the integrated 4G LTE modem (category 4), 2x SIM with automatic switching, 2.4 GHz Wi-Fi, RS-232/RS-485 serial ports, USB, memory card slot, digital I/O, and relay. It is equipped with 3x LAN and WAN ports, allowing for flexible connectivity and support for WAN failover for backup connections in case of a failure. With remote management via RMS and extensive VPN options, it is an ideal solution for secure and efficient communication in industrial systems.

Key Features

• 4G/LTE mobile connectivity (Cat 4 - 150 / 50 Mbps), 3G and 2G
• Wi-Fi: 802.11b/g/n, speed of 300 Mbps
• (2) SMA female (LTE) + (2) RSMA female (Wi-Fi) + (1) SMA female (GNSS)
• GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS
• (3) 10/100 Mbps LAN + 10/100 Mbps WAN
• (2) mini SIM slots (2FF format), automatic switching
• (1) digital input + (1) digital output + 10-pin industrial I/O
• (1) SPST relay output (40 V, 4 A)
• Power type: 4-pin automotive and PoE (only passive 9 - 30 V DC, not 802.3af/at)
• (1) RS-232 + (1) RS-485
• Memory card slot - up to 2 TB
• USB 2.0 - for connecting external HDD, modem, printer, USB serial adapter, etc.
• Remote RMS management and extensive VPN options

Package Contents

• Device
• 9V / 1A power adapter
• Patch cable 1.5m
• (2) LTE antenna (SMA male)
• (2) Wi-Fi antenna (RSMA male)
• (1) GNSS antenna (SMA male)
• (2) terminal blocks for RS-485 and I/O
• Kit with SIM adapters
