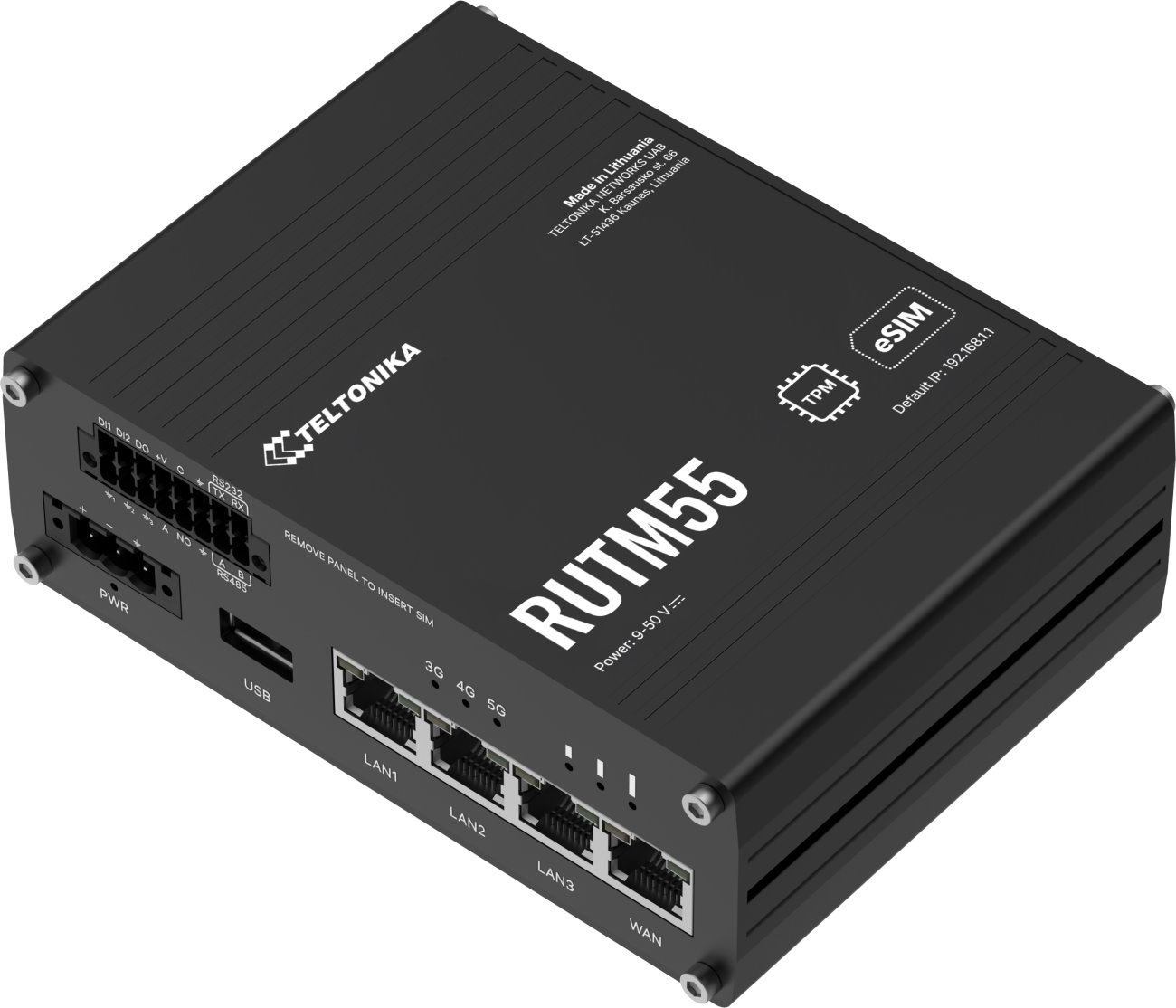

Teltonika RUTM55 Industrial 5G Wi-Fi Router, I/O, RS232 and RS485, GPS, eSIM

The compact industrial mobile router is designed for demanding industrial application environments. It offers reliable connectivity thanks to the 5G integrated modem, 2x SIM, eSIM (up to 7 profiles) with automatic switching, Dual-Band Wi-Fi 5 (802.11ac wave2), GPS, digital I/O, serial ports, and relays. It is equipped with 3x Gigabit LAN and a Gigabit WAN port, allowing flexible connectivity and support for WAN failover for backup connections in case of outages. With remote management via RMS and extensive VPN options, it is an ideal solution for secure and efficient communication in industrial systems.

Key Features

• 5G mobile connectivity (4x4 MIMO) - SA 2.4 Gbps / 900 Mbps or NSA 3.4 Gbps / 550 Mbps
• Dual-Band Wi-Fi: 802.11a/b/g/n/ac, speed 300 + 866 Mbps
• (4) SMA female (5G) + (2) RSMA female (Wi-Fi) + (1) SMA female (GNSS)
• GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS
• (3) 10/100/1000 Mbps LAN + 10/100/1000 Mbps WAN
• (2) mini SIM slot (2FF format), up to 7 eSIM profiles, automatic switching
• (2) digital input + (2) digital output + (1) analog input
• (1) SPST relay output (24 V, 10 A)
• Power type: 4-pin automotive (9 - 50 V DC) and PoE (passive only 9 - 50 V DC, not 802.3af/at)
• USB 2.0 - for connecting external HDD, modem, printer, USB serial adapter, etc.
• Remote management RMS and extensive VPN options

Package Contents

• Device
• 3-pin terminal block
• (2) 8-pin terminal blocks
• Allen key
• Kit with SIM adapters
