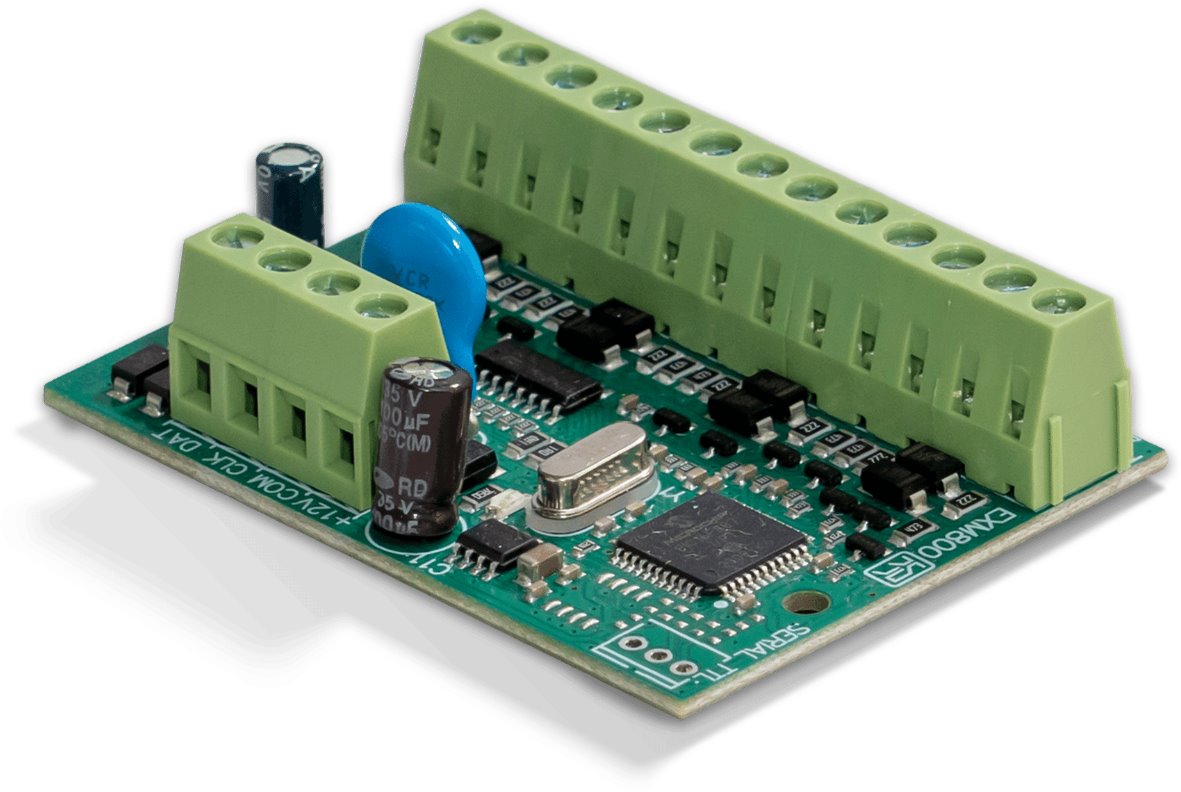

Teltonika Security EXM800, Programmable 8 zones expansion module

The expansion module offers 8 configurable terminals, which can be used as input zones or programmable PGM outputs according to system needs. It supports a wide range of loop connections – NC, NO, NC/EOL, NO/EOL, NC/DEOL, and NO/DEOL – allowing easy adaptation to various security installation requirements.

The integrated power voltage measurement provides immediate control of the correct power supply to connected devices. Communication via KRBUS allows for a distance of up to 300 m from the control panel, facilitating installation in larger buildings. Power supply is through a DC terminal block in the range of 9–14 V DC.

Key Features

• 8 configurable terminals
• Input zones or programmable PGM outputs
• Combination of inputs and outputs as needed for installation
• Support for NC, NO, NC/EOL, NO/EOL, NC/DEOL, NO/DEOL connections
• Power control of connected devices
• Communication via KRBUS line up to 300 m from the control panel
• Power supply 9–14 V DC via terminal block
• Flexible expansion of the security system
