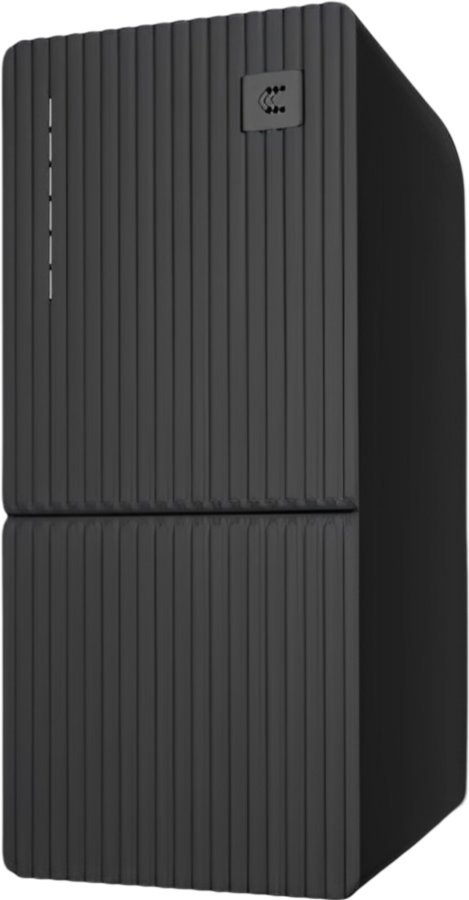

Teltonika TeltoCharge EVC1 charging station for electric cars, 22kW, 3 phase, Type 2 with 5m cable, modem, no cover

Elegant charging station for electric vehicles and plug-in hybrids with power of up to 22 kW and Type 2 socket. It offers local control via Ethernet, Wi-Fi, 4G/LTE Modem (Quectel EG91-EX) or Bluetooth and supports OCPP 1.6 and Modbus/RS-485. It allows authorization using RFID (NFC) card or application, which also enables management and monitoring of charging. The station supports solar integration and dynamic power management. With IP55 and IK10 rating, it is suitable for outdoor use. The charger ensures safe and efficient charging even in challenging conditions such as public parking lots, garages, or home environments.

Key features

• Power: 22 kW
• Input voltage: 3× 400 V (option 1× 230 V)
• Input current: up to 32 A
• Output: IEC 62196 Type 2
• Communication 4G/LTE modem - Quectel EG91-EX
• Current protector: no
• Enclosure rating: IP55, IK10
• Operating temperature: -30 to +50 °C
• Dimensions: 341 × 170 × 94 mm
• Included in the package is 1 NFC card
• Charger without housing - housing needs to be ordered separately
