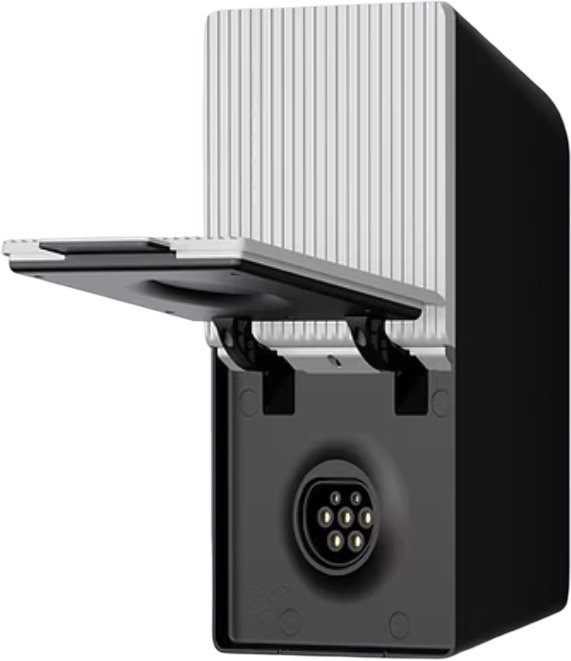

Teltonika TeltoCharge EVC2 charging station for electric cars, 22kW, 3 phase, Type 2 socket, no cover

The Teltonika charging station for electric vehicles has been designed for demanding conditions where the weather does not ask. Thanks to the IP56 protection and IK10 anti-vandal protection, it reliably withstands rain, dust, and impacts, operating in extreme temperatures from -30 °C to +50 °C. European manufacturing with rigorous quality control ensures long service life and safe operation. Elegant wall installation with the option for cable entry from the back or bottom maintains a clean appearance and maximum protection. Replaceable front panels in several colors allow for matching with both home and corporate environments.

Smart charging under your control

Three-phase power of 400 V with a power output of up to 22 kW and a Type 2 socket ensures compatibility with every electric vehicle or PHEV. Connection via Wi-Fi, LAN, Bluetooth, or RS-485 (Modbus) paves the way for full management and remote control. The mobile app in 25 languages offers smart scheduling, detailed statistics, and cost optimization. Set it once, and the charging adapts to your routine – efficiently, safely, and without worries.

Benefits over the first generation

• Integrated 4G/LTE connection (eSIM / Dual SIM)
• Dynamic and multi-stage load balancing
• OCPP 1.6 and remote management via RMS
• Integrated RCD protection (Type B residual current device not required)
• Separate mounting plate for easy installation
• Larger connection terminals (up to 10 mm2)

Key features

• Protection class IP56 – resistance to dust and water
• Anti-vandal protection IK10 – high mechanical resistance
• Power up to 22 kW – three-phase 400 V
• Type 2 socket – compatible with EV and PHEV
• Communication - Wi-Fi, LAN, Bluetooth, RS-485 (Modbus)
• Control via mobile application (25 languages)
• Wall installation, cable entry from the back or bottom
• Operating temperature -30 °C to +50 °C
• Replaceable front panels (optional)
