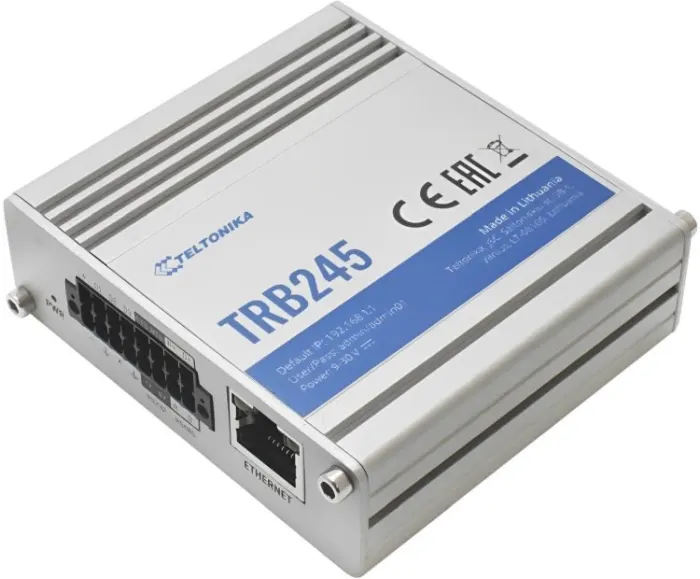

Teltonika TRB245 Industrial LTE Gateway, GPS, I/O, RS232 and RS485

The compact industrial mobile 4G LTE Gateway Router is designed for the demanding environment of industrial applications using serial ports, lots of I/O and GNSS. It offers a reliable connection thanks to an integrated 4G LTE modem (category 4), 2x SIM with automatic switching, serial ports RS-232, RS-485 (terminal box), 3x digital I/O and analog input. It is equipped with a 10/100 Mbps LAN port, which allows a fast enough connection for IoT applications. Thanks to remote management via RMS and wide VPN options, it is the ideal solution for secure and efficient communication in industrial systems.

Key Features

• Mobile connection 4G/LTE (Cat 4 - 150 / 50 Mbps), 3G and 2G
• (1) SMA female (LTE) + (1) SMA female (GNSS)
• GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS
• (1) 10/100 Mbps LAN
• (2) mini SIM slot (2FF format), automatic switching
• (3) digital input/output + (1) analog input
• Serial RS-232 and RS-485 port (via terminal block)
• Power supply via DC terminal block (9 - 30 V DC)
• Remote RMS management and wide VPN options

Package contents

• Device
• Power adapter 9V / 1A
• Patch cable 1.5m
• LTE antenna (SMA male)
• (1) GNSS antenna (SMA male)
• 16-pin terminal block
• Allen wrench
