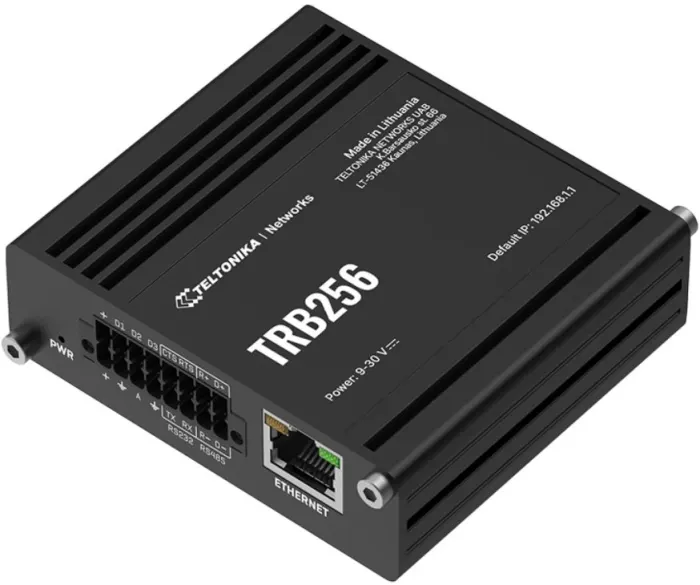

Teltonika TRB256 Industrial LTE-M1/NB-IoT Gateway Router, GPS, I/O, RS232 and RS485

The compact industrial M2M Gateway is designed for demanding environments of industrial applications using serial ports, lots of I/O and GNSS. It offers IoT connectivity thanks to a 4G LTE-M1 / Narrowband2 IoT modem for the transfer of small volumes of data, 2x SIM with automatic switching, serial ports RS-232, RS-485 (terminal block), 3x digital I/O and analog input. It is equipped with a 10/100 Mbps LAN port, which allows a fast enough connection for IoT applications. Thanks to remote management via RMS and wide VPN options, it is the ideal solution for secure and efficient communication in industrial systems.

Key Features

• IoT mobile connection - 4G LTE Cat M1 / Narrowband2 IoT
• (1) SMA female (LTE) + (1) SMA female (GNSS)
• GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS
• (1) 10/100 Mbps LAN
• (2) mini SIM slot (2FF format), automatic switching
• (3) digital input/output + (1) analog input
• Serial RS-232 and RS-485 port (via terminal block)
• Power supply via DC terminal block (9 - 30 V DC)
• Remote RMS management and wide VPN options

Package contents

• Device
• 16-pin terminal block
• Allen key
