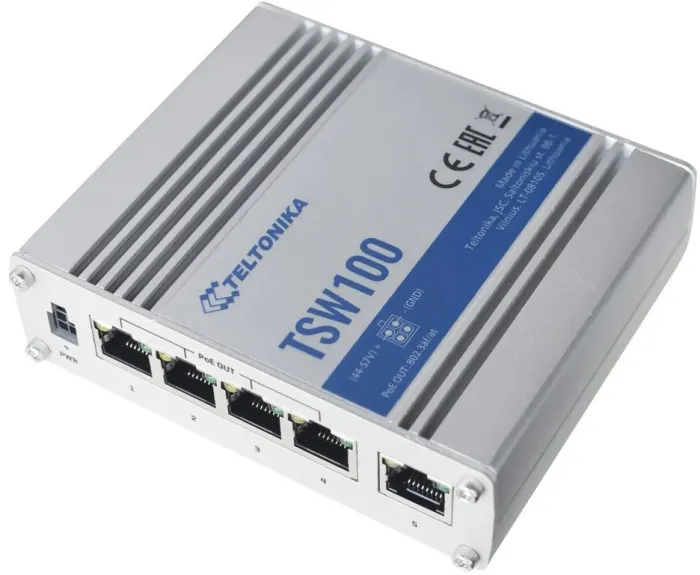

Teltonika TSW100 Industrial unmanaged PoE switch, 5x GLAN, 4x PoE

The industrial switch from Teltonika offers 5x 10/100/1000 Mbps LAN ports, of which 4 support PoE according to 802.3af/at standards with a maximum power of 30W per port. The total PoE budget can reach up to 120 W, which enables efficient powering of multiple devices at the same time. Robust industrial design without management in combination with a compact aluminum body ensures reliable performance even in demanding conditions. Power is provided via a 4-pin connector with a voltage of 44 to 57 V DC, which provides flexibility and stability in various operating environments.

Key Features

• 5x 10/100 Mbps LAN (4x 802.3af/at PoE)
• PoE budget up to 120 W - depends on the adapter used (the package includes a 65 W adapter)
• Power supply via 4-pin connector with 44 - 57 V DC or 7 - 57 V DC (lower voltage without PoE)
• Dimensions: 115 x 32 x 95 mm
• Integrated DIN rail holder
• Compact aluminum body with low weight
• Protection against overvoltage and reverse polarity
• Wide operating temperature range -40 to 75°C

Package contents

• Device
• Power adapter 48V / 1.3A (4-pin connector)
