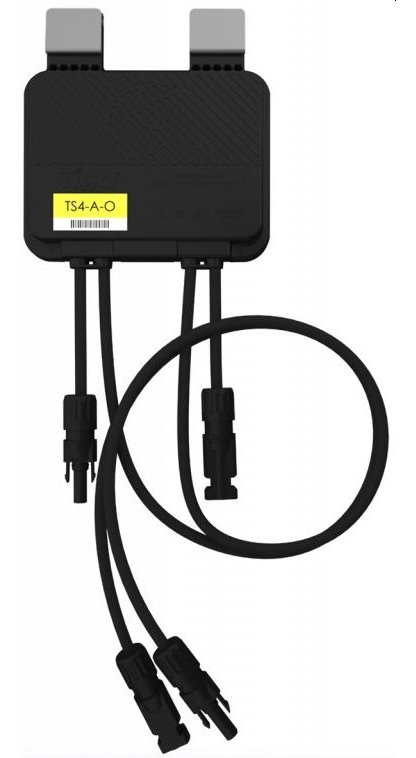

Tigo TS4-AO-700W Performance optimizer

The TIGO optimizer is designed for installation in shaded areas with reduced clearance. Suitable for solar panels up to 700 W. We recommend using the Tigo optimizer only from a string length of 7 modules. It should also be taken into account that when closing several sides of the roof with different orientations in a chain, each side of the roof should be occupied by at least 7 modules.

It is also important that you can normally only equip shadowed modules with the Tigo optimizer. This does not apply if 2 strings are connected in parallel to the MPPT input of the connected inverter. In this case, all modules must be equipped with the Tigo optimizer. Using the Tigo Cloud Connect Set is not required, but is recommended due to Tigo's ability to learn through the Cloud Connect module.

Key Features

• Improves the efficiency of photovoltaics in case of shading, pollution or complicated roof
• Higher energy yield
• Greater design flexibility
• Maximum use of the roof
• Plus all the benefits of security and monitoring
• Works with any inverter and charge controller

Technical specifications

• Maximum system voltage: 1000 V
• Voltage range: 16-80 V
• Maximum input current (IMAX): 15A
• Wireless Zigbee communication
• Safety shutdown according to UL (NEC 2014 & 2017 690.12); Yes
