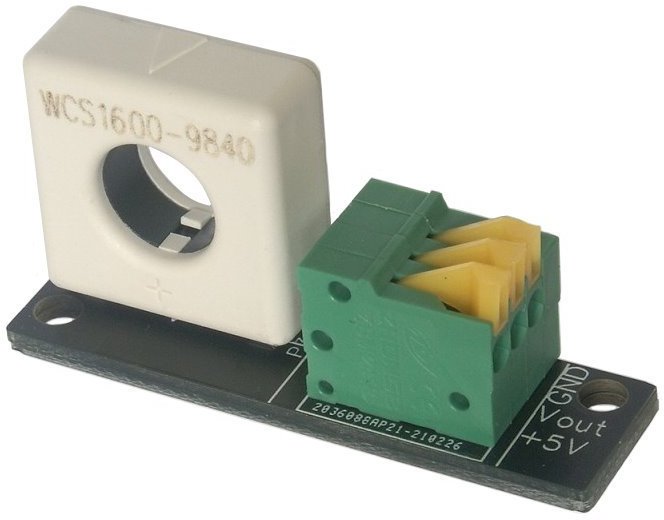

Tinycontrol Current sensor up to 100A for LAN controller, WCS-1600

Reliable sensor for indirect measurement of DC current in the range of up to 0–100 A allows for safe monitoring of electrical circuits without interference with the conductor (the coil is not openable). Thanks to isolation voltage of 4000 V, it provides a high level of protection and stability even in demanding applications. Support for LK3 and LK4 controllers and flexible power supply of 3.3 V or 5 V facilitate integration into various systems.

Key Features

• Non-invasive measurement of DC current
• Current range: 0-100 A
• Isolation voltage: 4000 V
• Sensitivity: 22 mV/A
• Maximum diameter of measured conductor: 9 mm
• Supply voltage (from LAN controller): 3.3 V or 5 V
• Compatibility with LK3 and LK4
