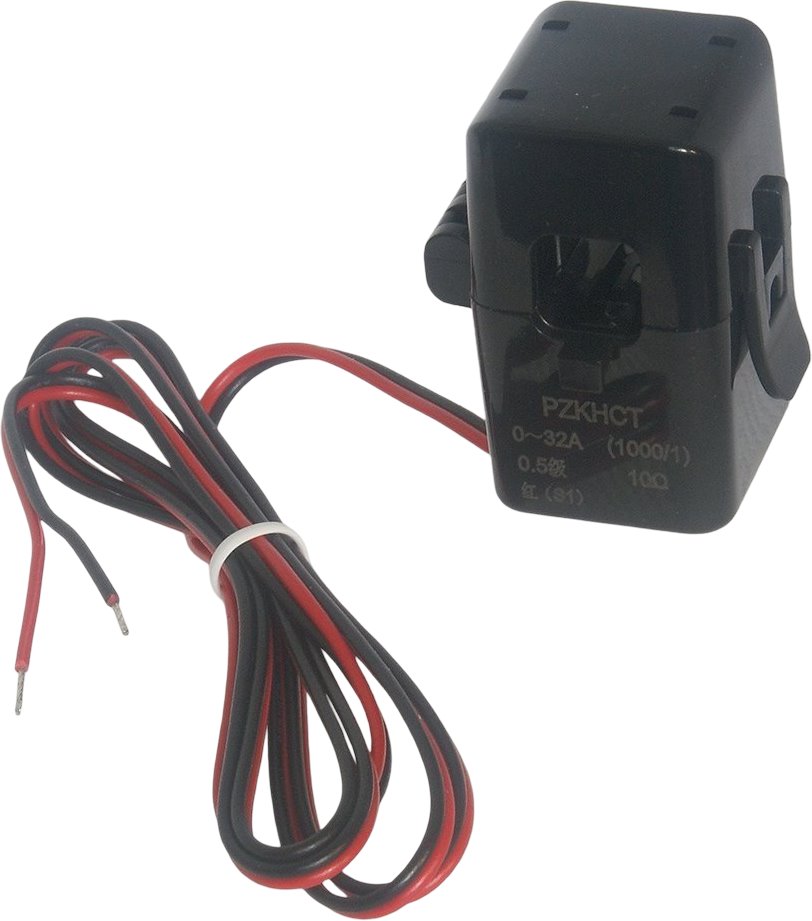

Tinycontrol Current sensor up to 32A for LAN controller

The miniature split-core current transformer enables efficient monitoring of consumption without interrupting operation. Thanks to the split-core design, it can be easily snapped onto a conductor, significantly simplifying installation and service. It offers a measurement range of 0–32 A and provides reliable data for energy management and monitoring due to its accuracy class of 0.5.

The 1 000 : 1 transformation ensures seamless connection to the analog inputs of measuring and control systems. Included is a 33 ohm resistor for direct use with 3.3V inputs, which accelerates practical deployment. The design with a hole diameter of 11 mm and high insulation allows for safe mounting on standard wiring and stable long-term operation even in challenging conditions.

Key Features

• Measurement range 0–32 A AC
• Current transformation 1 000 : 1
• Split-core design for easy installation
• Accuracy class 0.5
• Hole diameter 11 mm with high insulation
• 33 ohm resistor for 3.3V analog inputs
