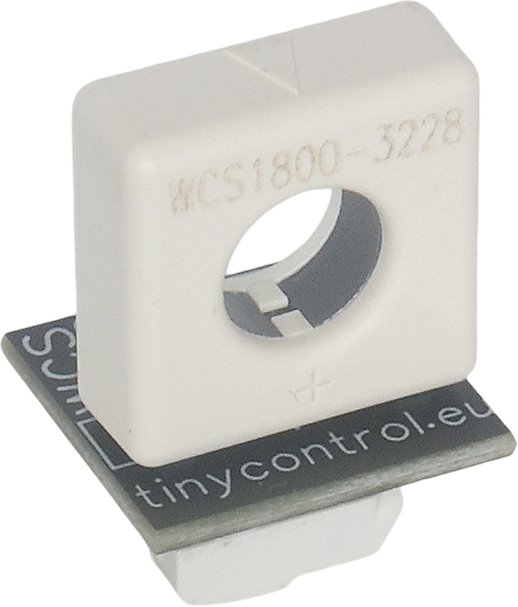

Tinycontrol Current sensor up to 35A for LAN controller, WCS-1800

Reliable sensor for indirect DC current measurement in the range of up to 0-35 A allows safe monitoring of electrical circuits without intervening in the conductor (the coil is not openable). With an isolation voltage of 4000 V, it provides a high level of protection and stability even in demanding applications. Support for LK3 and LK4 controllers and flexible power supply of 3.3 V or 5 V facilitate integration into various systems.

Key Features

• Non-invasive DC current measurement
• Current range: 0-35 A
• Isolation voltage: 4000 V
• Sensitivity: 66 mV/A
• Maximum diameter of the measured conductor: 9 mm
• Supply voltage (from LAN controller): 3.3 V or 5 V
• Compatibility with LK3 and LK4
