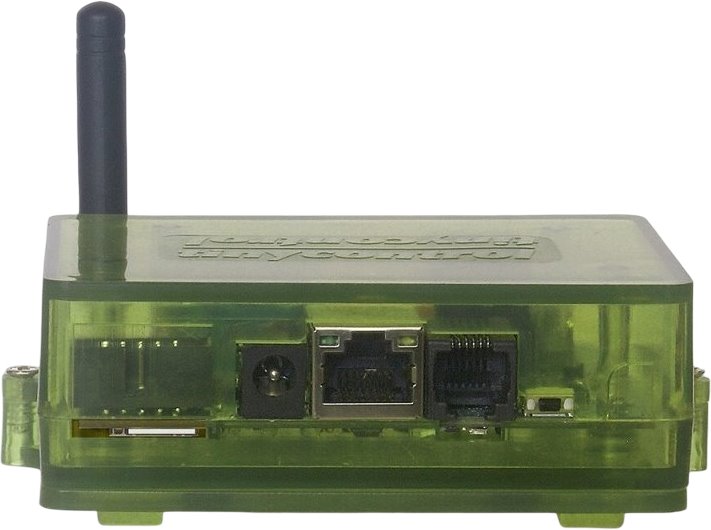

Tinycontrol LAN controller, v4.0 with LTE

The modern LAN controller with relay offers a flexible solution for remote control of technologies and automation of various processes. The integrated web server allows for convenient monitoring of connected sensors and controlling outputs from anywhere via a standard web browser. Thanks to the built-in web server for remote management, the device can be easily configured and tailored to specific applications. The advanced event system enables responses to sensor data and automatically triggers defined actions, such as turning on ventilation, lighting, or other devices. A practical feature is also the integrated scheduler for timed switching on and off, which allows controlling the operation of devices according to a daily schedule or a set time period.

Examples of Use

• Automatic heating control when the set temperature is exceeded
• Turning lights and other devices on or off
• Monitoring and controlling a solar power plant – battery voltage, current and voltage from PV panels, inverter performance and production
• Irrigation regulation or flood detection
• Security using a PIR sensor or detection of door and window openings
• Remote monitoring of Sofarsolar solar regulators via the Modbus bus of the LAN controller

IoT Connectivity and Wide Integration Options

The new generation brings a modern approach to IoT automation and easy integration into existing systems. The device offers triple communication interfaces Ethernet and Wi-Fi, which can be used independently or simultaneously for maximum connection flexibility. There is also an option for LTE connectivity for remote installations without a wired network. Control and integration into other systems are facilitated by support for HTTP and MQTT protocols, enabling the device to connect with cloud services or automation platforms. For technology regulation, there are also three PWM outputs for controlling lighting or electrical motors, expanding usage options in industry, smart buildings, and technical installations.

Multifunction Control and Measurement Module

A highly versatile device for comprehensive monitoring and control offers 3 analog inputs with selectable range for measuring voltage, current, pressure, or light, and 4 logical inputs for motion sensors, door opening, or pulse counters. The module supports 1Wire and I2C buses for connecting up to 8 DS18B20 temperature sensors, humidity and CO2 sensors, or OLED displays. It provides 10 A/250 V relay and transistor outputs for switching devices, 3 PWM outputs for regulating motors or lighting, and measuring temperature, humidity, and supply voltage directly on the board for maximum control over the system.

Key Features

• 3 analog inputs with selectable range for measuring voltage, current, pressure, or light
• 4 logical inputs for motion sensors, door openings, buttons, or pulse counters
• 1Wire and I2C inputs for up to 8 DS18B20 temperature sensors, humidity, CO2, and OLED sensors
• UART and RS-485 buses for communication with external devices and Modbus RTU
• 1 relay 10 A/250 V and 1 transistor output for controlling devices up to 0.6 A
• Supply voltage: 8–58 V Power consumption: 0.5 W PoE
• 4 transistor OC outputs and 3 PWM outputs (1 Hz–1 MHz)
• Measuring temperature, humidity, and supply voltage directly on the board
• Version with built-in LTE modem
