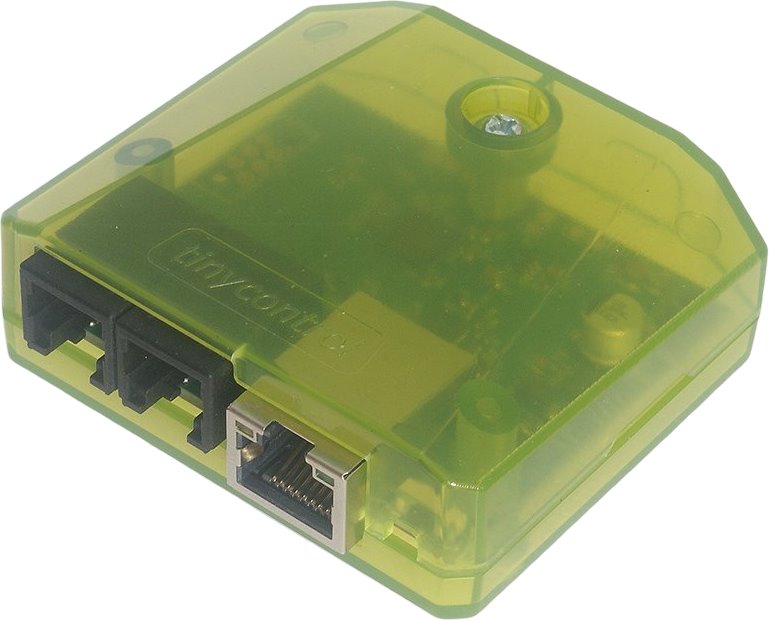

Tinycontrol LK4mini I2C

The compact device allows for efficient collection and management of data from digital sensors in real-time. Thanks to the integrated web server, you have an instant overview of the measured values and the ability to configure from anywhere using a standard browser. Reliable connectivity is ensured by Ethernet with PoE 802.3af support, which greatly simplifies installation without the need for a separate power supply.

The device supports I2C bus for sensor connection and also enables the connection of additional sensors via the 1-Wire interface. Compact dimensions and DIN rail mounting facilitate integration into control panels and technological units. The wide support for sensors measuring temperature, humidity, CO2, or particulate matter makes it a versatile tool for both industrial and commercial environments.

Key Features

• Integrated web server for monitoring and configuration
• Ethernet 10/100 Mbit/s with PoE 802.3af
• I2C bus + 1-Wire support (DS18B20)
• Support for a wide range of sensors (BME280, SCD40, SPS30, etc.)
• Optional 5 V power supply
• Compact dimensions and DIN rail mounting
• Operating temperature range -20 to +85 °C
