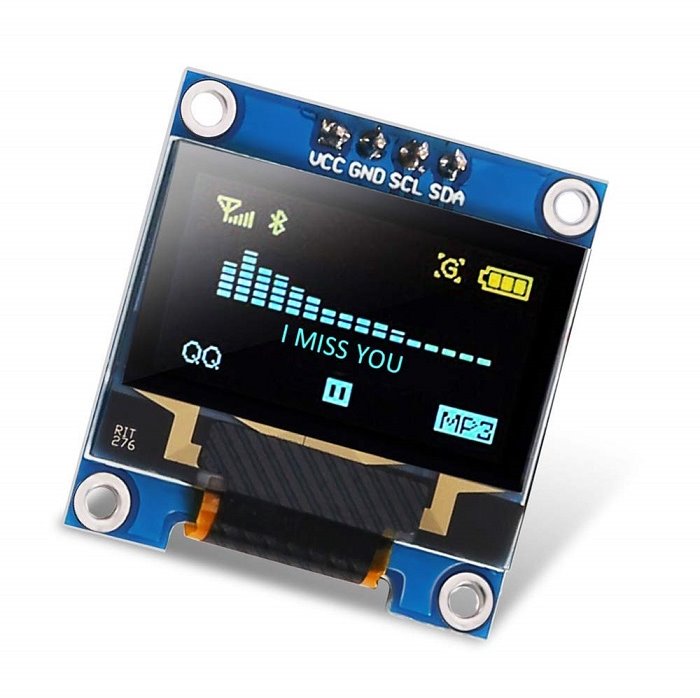

Tinycontrol OLED display for expansion module with LAN controller LK3

The compact 0.96" OLED display expands the possibilities of the LAN controller v3 and offers I2C communication (address 0x3C) for easy integration. With power supply 3–5 V DC, it is universally applicable and the four-pin interface GND, VCC, SCL, SDA ensures a quick connection. Reliable operation is also supported by a wide temperature range of -30 °C to 80 °C.

Key Features

• 0.96" OLED display
• I2C communication (address 0x3C)
• Power supply 3–5 V DC
• 4 pins: GND, VCC, SCL, SDA
• Operating temperature -30 °C to 80 °C
