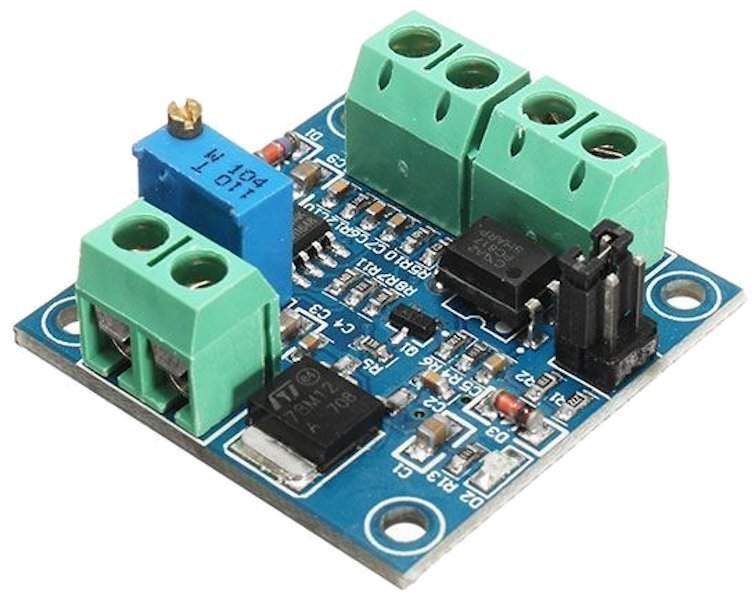

Tinycontrol PWM to 0–10V Analog Signal Converter for SSR Relay Control

The module allows conversion of PWM signal 0-100 % to linear analog voltage 0-10 V, ideal for controlling SSR relays and analog controllers. Precise output calibration using an integrated trimmer ensures a reliable and stable signal. The module supports input frequencies of 0–1 kHz, operates on 12 V DC power with overload protection, and offers a compact design for easy integration even in demanding environments with an operating temperature range of -25 to +85 °C.

Key Features

• Input frequency 0–1 kHz
• Output voltage: 0 to 10 V
• Precise calibration with trimmer
• 12 V DC power with protection
• Response time 15 s
• Operating temperature -25 to +85 °C
