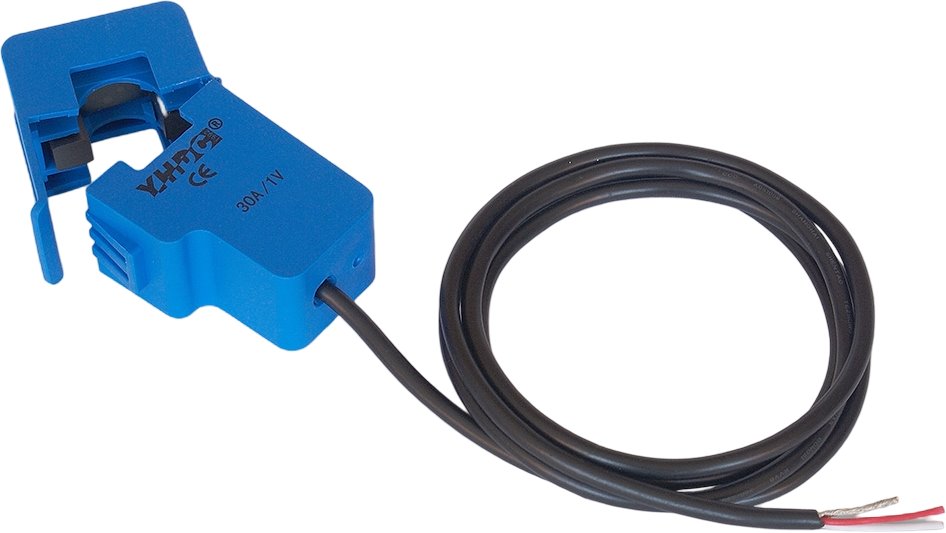

Tinycontrol SCT current sensor up to 30A for LAN controller LK3 and LK4

The non-invasive current sensor allows for simple measurement of alternating current without interrupting the conductor. Just place it over one conductor to obtain an output voltage of 0–1 V AC proportional to the current, ideal for integration with LAN controllers LK3 and LK4. Measurement should only be performed on one conductor, not the entire cable, through which the current flows in both directions. The practical connection is facilitated by a 1 m cable with a 3.5 mm jack connector, which can be adapted to the installation.

Key Features

• AC current range: 0-30A (AC)
• Maximum diameter of the measured conductor 12 mm
• Built-in sampling resistor 62 Ohm
• Output voltage alternating: 0-1V AC
• 1 m cable with 3.5 mm jack connector
