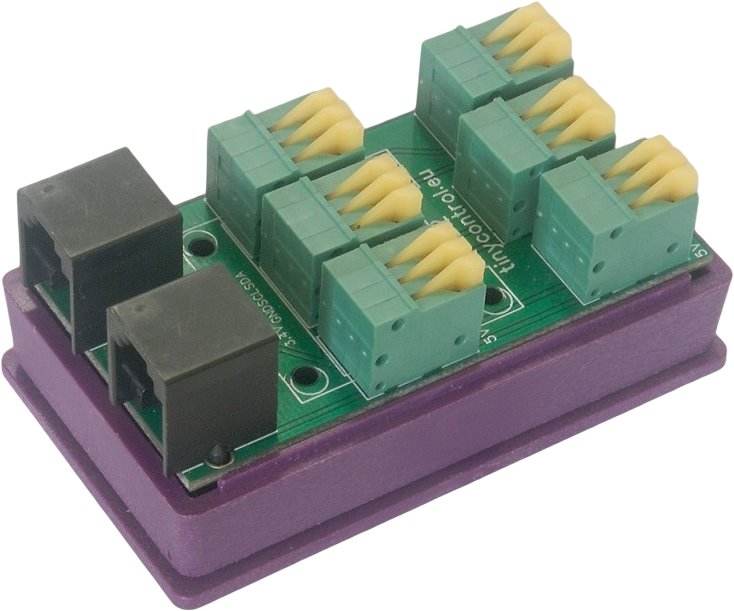

Tinycontrol tB2 Expansion Board with 1-Wire and 6x Terminal, I2C for LAN Controller LK3

Expansion module from Tinycontrol with 1wire, I2C enables easy connection of DS18B20 sensors thanks to spring terminals and a micro JST connector for I2C, such as the BME280. Support for communication with LAN Controller v3 ensures reliable integration into the system. The module is easy to mount, replaceable, and offers optional DIN rail mounting, while the second connector allows for the connection of additional 1-Wire or I2C sensors.

Key Features

• Interface: 2× RJ-12 (I2C/1-Wire), 1× I2C micro (1.25 mm), 6× 3pin connector
• Spring terminals for DS18B20 sensors
• Communication with LAN Controller v3
• Optional DIN mounting
• Dimensions: 66 × 36 × 18 mm
