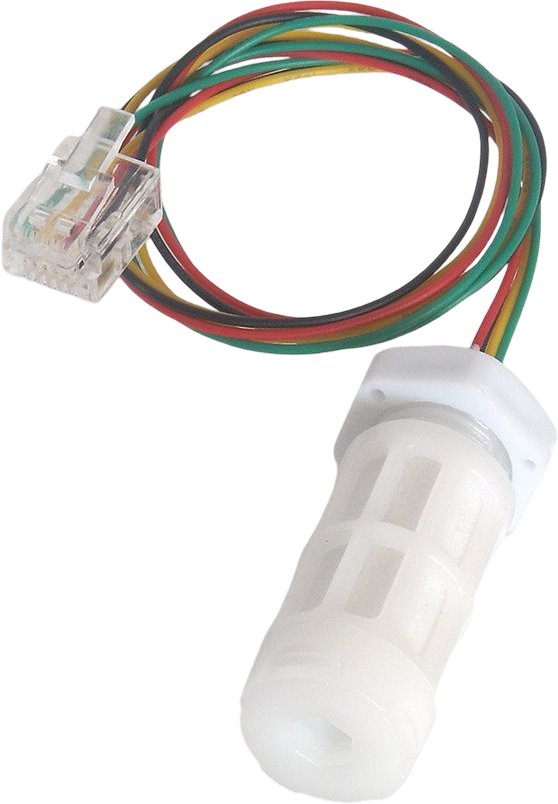

Tinycontrol Temperature, Humidity and Barometric Sensor BME280 for LAN Controller LK3 and LK4, RJ12

The integrated sensor from Tinycontrol enables precise monitoring of the environment in technology areas, server rooms, and smart installations. It offers measuring temperature, humidity, and barometric pressure in one compact device and easy connection via RJ12 connector on the I2C bus for LAN controller v3. Reliable operation in demanding conditions is also supported by IP54 rating, which protects the electronics from dust and moisture.

Key Features

• Measurement of temperature, humidity, and barometric pressure
• Pressure measurement range 300 to 1100 hPa
• Humidity measurement range 0–99.9 %
• Response to humidity change 63 % in 1 s
• Temperature measurement range -40 to 85 °C
• Temperature measurement accuracy ±0.5 °C
• RJ12 connector (6P6C) for LAN controller v3
• Connection via I2C bus
