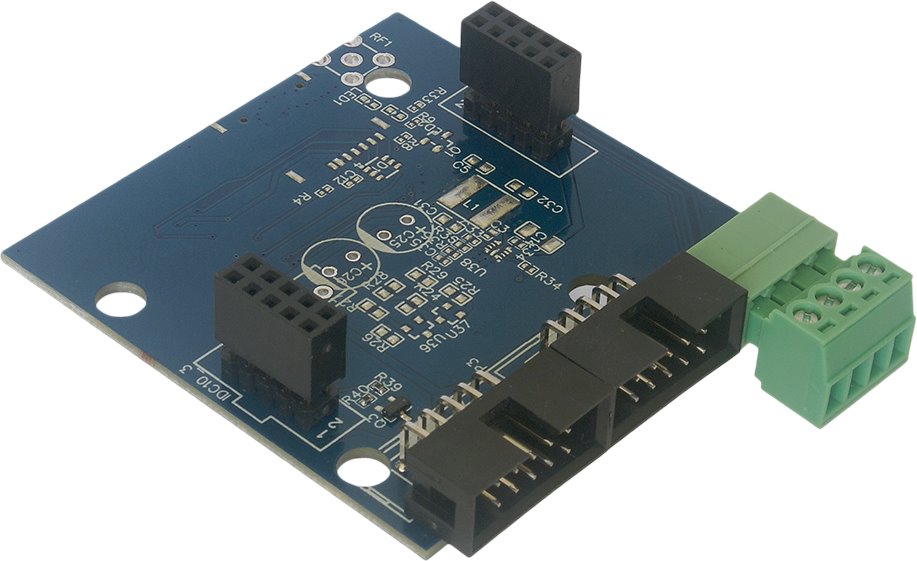

Tinycontrol tHAT2 Expansion Board with 4x Relay and MODBUS for LAN Controller LK3

The board allows for easy addition of 4 relay outputs with open collector directly controlled from the PWM outputs of the LAN Controller, which increases flexibility and automation options. The provided outputs OUT1–OUT4 along with 3.3 V power for sensors and analog inputs INPA1 and INPA2 offer convenient connection of sensors and peripherals without complex wiring.

The built-in RS485 converter for Modbus enables stable and reliable communication in both industrial and home automation networks. The board is also available in a version with IDC10 connectors for connecting relay modules, simplifying installation and speeding up deployment into existing systems. An ideal solution for professional expansion of controllers HW 3.7 and 3.8.

Key Features

• 4 relay outputs with open collector
• RS485 converter with Modbus support (HW3.7)
• Relay outputs OUT1–OUT4 and 3.3 V power supply
• Analog inputs INPA1 and INPA2
• IDC10 connector for connecting relay modules
