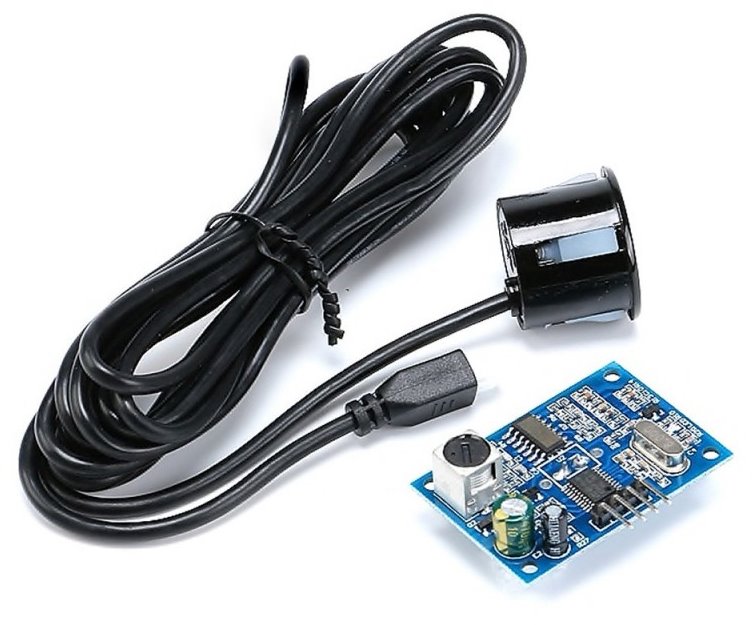

Tinycontrol Ultrasonic distance sensor 20–600 cm for LAN controller LK4

The ultrasonic sensor provides reliable and rapid distance data for the LAN controller LK4, suitable for obstacle detection or real-time object monitoring. Thanks to high measurement accuracy of ±1 cm and a resolution of 1 mm, it can support effective automation and event settings. It supports both UART and PWM interfaces and operates at a voltage of 3–5.5 V with low consumption.

Key Features

• Measurement accuracy ±1 cm
• Measurement range 20–600 cm
• Detection angle 75°
• Probe frequency 40 kHz
• UART and PWM interfaces
• Supply voltage DC 3–5.5 V
• Operating temperature -20 to +70 °C
