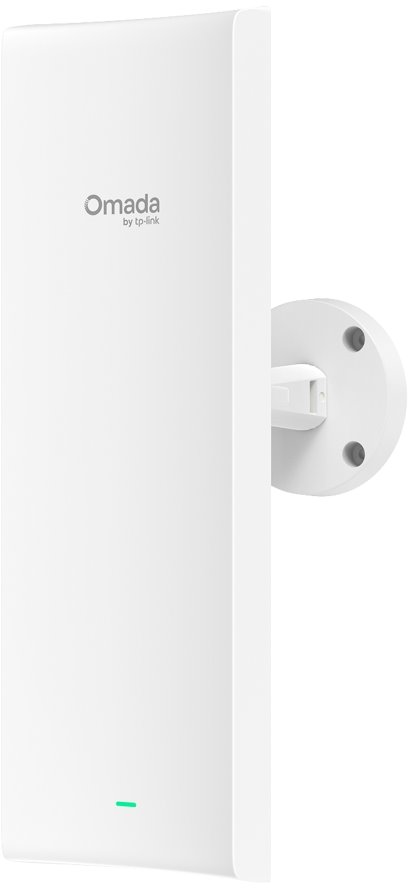

TP-Link Sector Bridge 5 Omada Wireless unit, 5 GHz

The wireless sector bridge operates in the 5 GHz band and represents a powerful central point for demanding point-to-multipoint installations. TDMA technology allows you to connect up to 32 Flex Bridge 5 units, easily creating an extensive network between multiple buildings or remote locations. Range of up to 5 km and a transmission speed of up to 866 Mb/s ensure reliable wireless connectivity even over long distances.

Durability for demanding conditions

A wide radiation angle of 120° and 16dBi dual-polarized directional antennas provide quality coverage of extensive areas. An IP66 rating, 6 kV lightning protection, and operation from -40 to 70 °C enable deployment even in extreme outdoor environments. Simple pairing using DIP switches, installation level, and assisted aiming through the app facilitate installation. Power via 802.3at/af PoE, passive 24V PoE, or 12V DC offers flexibility in infrastructure design.

Key features

• Wireless sector bridge 5 GHz
• Speed up to 866 Mb/s
• Range up to 5 km
• Support for up to 32 Flex Bridge 5 units
• TDMA technology for point-to-multipoint networks
• Wide radiation angle of 120°
• 16dBi dual-polarized directional antennas
• IP66 rating for outdoor use
• DIP switches for easy pairing
• Wall or pole mounting

Package contents

• Device
• 24 V Passive PoE adapter
• Power cable
• Mounting accessories
