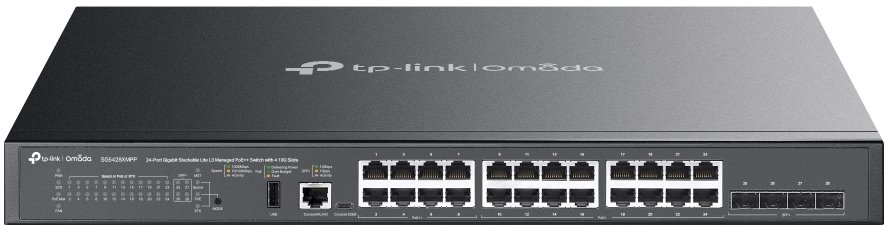

TP-Link SG5428XMPP Omada L3 PoE Switch

The L3 PoE Switch from TP-Link’s Omada series is a managed L3 switch with PoE and stacking functionality, featuring 24 Gigabit LAN ports with 802.3af/at PoE support, of which 8 ports support 802.3bt PoE (90W/port). It also includes 4 SFP+ ports with 1/10 Gbps speed (all 4 can be used for stacking). The switch provides a total PoE power budget of 500W, is rack-mountable (19"), and is cooled by 3 side-mounted fans.

Key Features

• 16× 802.3af/at (30W/port) + 8× 802.3af/at/bt (90W/port) PoE
• Total 500W PoE Budget
• 24× Gigabit LAN with PoE and 4× 1/10 Gbps SFP+ optical ports for expansion or stacking
• Stacking throughput up to 80 Gbps using all 4 SFP+ ports
• Centralized cloud management via web or Omada app
• Standalone management via WEB, CLI, SNMP, and RMON
• L3, VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
• Durable metal chassis, rack-mountable design
• Compatible stack models: SG5428X, SG5452X, SG5428XMPP, and SG5428XMPP

Omada Controller

The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and gateway routers, providing 100% centralized cloud management. Omada enables a highly scalable network with control from a single interface. It delivers seamless wireless and wired connections, ideal for hospitality, education, retail, offices, and more.

Package Contents

• Device
• Power cable
• Rackmount kit (19")
• Serial cable
