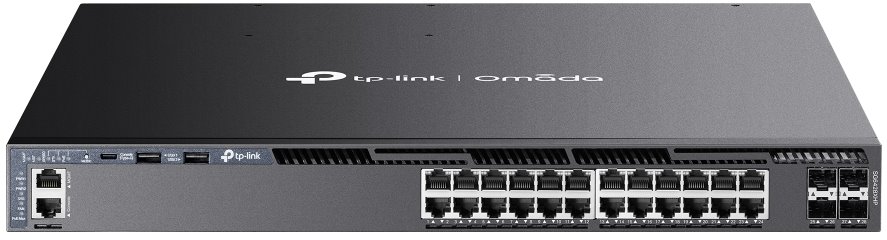

TP-Link SG6428XHP Omada Stackable L3 PoE Switch

Manageable L3 rackmount switch with the possibility of stacking up to 8 switches from the TP-Link brand from the Omada series. The Switch is equipped with 24x Gigabit LAN ports with 802.3af/at PoE support and 4x 10 Gigabit SFP+ ports backwards also compatible with 1G modules. All four optical ports support connection to the stack as well as classic expansion to the rest of the network. Due to the high availability, the switch allows the use of two Hot-Swap sources (equipped with one PSM500-AC from the factory) with redundancy and 4 Hot-Swap fans for sufficient supply of fresh air from the front to the back of the switch.

Key Features

• (24) 10/100/1000 Mbps LAN
• (24) 802.3af/at PoE, Total PoE budget 402 W
• (4) 1G/10G SFP+ slot (maximum 2x RJ45 SFP+ module)
• (2) slots for Hot-Swap power supplies - factory fitted with one PSM500-AC
• Serial port - RJ45 and USB-C
• (1) LAN management
• Dual Core ARM @ 1.5 GHz CPU, 4GB RAM (DDR4)
• Centralized management using Cloud Omada SDN
• L3 functions: RIP, OSPF, ECMP, VRRP, PIM-DM, DHCP Server/Relay
• Physical stacking for built-in redundancy and performance - up to 8 switches in a stack (via Omada only 4)

Package contents

• Device
• (2) Power cord
• (2) Brackets for 19" rack + screws
• Serial cable
