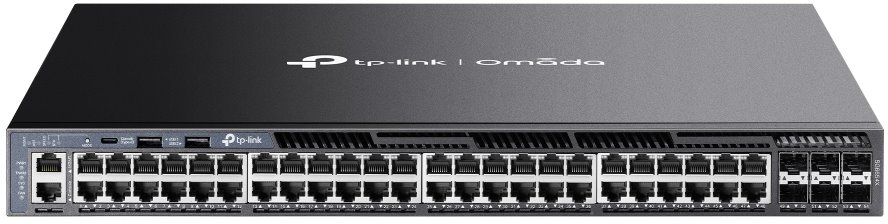

TP-Link SG6654X Omada Stackable L3 Switch

Manageable L3 rackmount switch with the possibility of stacking up to 8 switches from the TP-Link brand from the Omada series. The Switch is equipped with 48x Gigabit LAN ports and in addition 6x 10 Gigabit SFP+ ports backward compatible with 1G modules as well. All four optical ports support connection to the stack as well as classic expansion to the rest of the network. For high availability, the switch is equipped with two fixed power supplies with redundancy and 4 fans for sufficient supply of fresh air from the front to the back of the switch.

Key Features

• (48) 10/100/1000 Mbps LAN
• (6) 1G/10G SFP+ slot (maximum 2x RJ45 SFP+ module)
• (2) integrated redundant power supply - 230V AC
• Serial port - RJ45 and USB-C
• (1) LAN management
• Dual Core ARM @ 1.5 GHz CPU, 4GB RAM (DDR4)
• Centralized management using Cloud Omada SDN
• L3 functions: RIP, OSPF, ECMP, VRRP, PIM-DM, DHCP Server/Relay
• Physical stacking for built-in redundancy and performance - up to 8 switches in a stack (via Omada only 4)

Package contents

• Device
• (2) Power cord
• (2) Brackets for 19" rack + screws
• Serial cable
