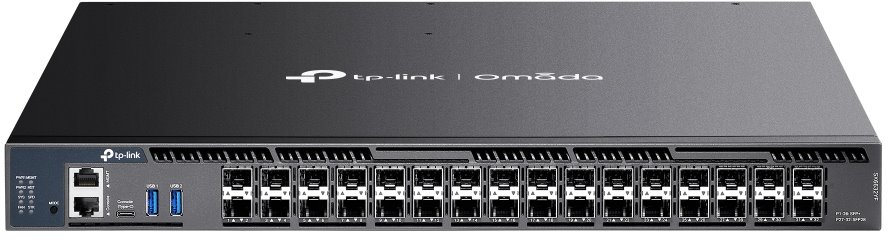

TP-Link SX6632YF Omada 10G Stackable L3 Switch

Manageable L3 rackmount optical switch with the possibility of connection to a stack of up to 8 switches from the TP-Link brand from the Omada series. The switch is equipped with 26x SFP+ (1/10 Gbps) and 6x SFP28 (1/10/25 Gbps ) slots for variable network expansion. All six optical ports support connection to the stack as well as classic expansion to the rest of the network. Due to the high availability, the switch allows the installation of two Hot-Swap sources (equipped with one PSM550-AC from the factory) with redundancy and 4 Hot-Swap fans for sufficient supply of fresh air from the front to the back of the switch.

Key Features

• (26) 10 Gbps SFP+ (maximum 6x RJ45 SFP+ module)
• (6) 1G/10/25G SFP28 slot (support only 25 Gbps DAC/SFP28 modules in the stack)
• (2) slots for Hot-Swap power supplies - factory fitted with one PSM550-AC
• Serial port - RJ45 and USB-C
• (1) LAN management
• Quad Core ARM @ 1.2 GHz CPU, 8GB RAM (DDR4)
• Centralized management using Cloud Omada SDN
• L3 functions: RIP, OSPF, ECMP, VRRP, PIM-DM, DHCP Server/Relay
• Physical stacking for built-in redundancy and performance - up to 8 switches in a stack (via Omada only 4)

Package contents

• Device
• (2) Power cord
• (2) Brackets for 19" rack + screws
• Serial cable
