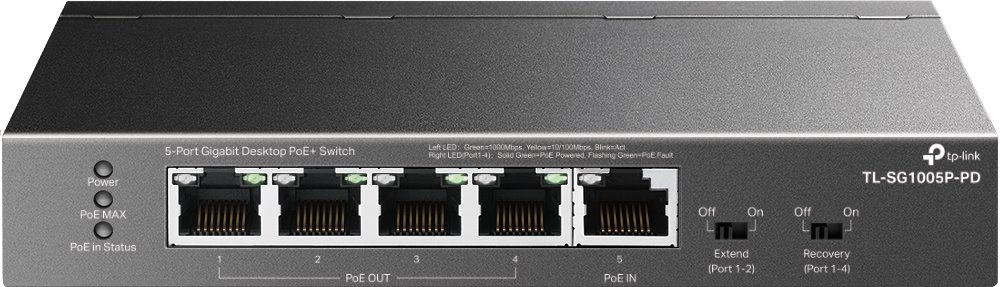

TP-Link TL-SG1005P-PD PoE switch

The unmanaged PoE switch in a robust metal chassis is ideal for powering cameras and other 802.3af/at devices with PoE support. The Switch has 5 Gigabit Ethernet ports with 4x PoE output with up to 30W per port and a total PoE budget of 66W at using a 90W PoE adapter. The switch can only be powered through the first port using 802.3af/at/bt PoE.

The switch also enables PoE at a distance of 250m (ports 1-4) when switching a special switch that causes the line speed on the PoE ports to decrease to 10 Mbps, which for transmission the image from the cameras is more than enough. Another bonus of the switch is the switch for PoE Auto Recovery (ports 1-4) ensuring automatic power restart for elements that stop communicating.

Key Features

• (5) Gigabit LAN
• (4) 802.3af/at PoE
• Power supply only via PoE-IN on port no. 5 802.af/at/bt PoE
• PoE Budget 66W (using 90W PoE) or 47W (using 60W PoE) or 21W (using 30W PoE)
• Wall or table mounting
• No fan

Package contents

• Device
