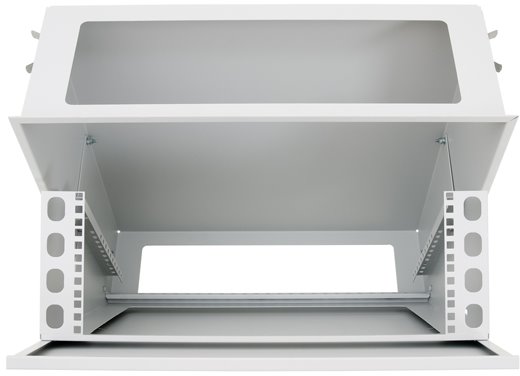

Triton 19" special GridBox 4U rack DGX for ceiling mounting

The Triton 19" special GridBox enables elegant integration of data and telecommunication technologies into standard and non-standard ceiling grids without disrupting their appearance. Thanks to compatibility with grids of 600 × 600 mm, it can completely replace a ceiling tile, while the planned frame edges facilitate the repositioning of the tile or drywall. The tilting 19" frame for 4U devices can hold up to 30 kg and ensures easy access to the installed technology.

The robust welded skeleton with IP30 protection is designed for long-term operation and secure storage of network and telecommunication components. The spring quick fasteners allow for quick attachment and precise height adjustment in the ceiling. Included in the equipment are grounding cables, a main grounding point M8, four suspension wires with eyes, and a 4D mounting kit for hassle-free installation.

Key Features

• Mounting in standard and non-standard ceiling grids
• Compatibility with a grid of 600 × 600 mm
• 19" tilting frame for 4U devices
• Maximum load capacity of 30 kg, IP30 protection
• Compact welded skeleton
• Spring quick fasteners for easy mounting
• Possibility of precise height adjustment
