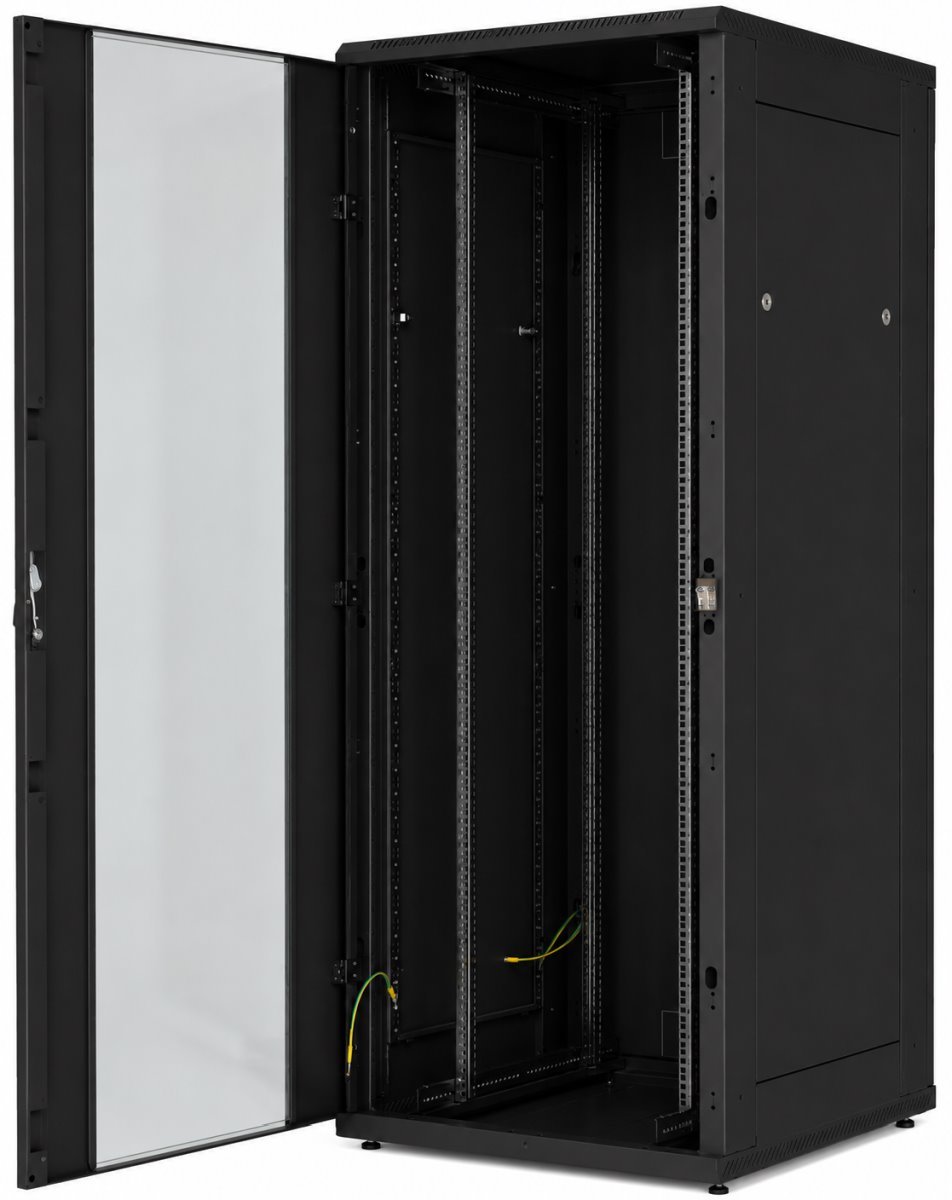

Triton 19" standing rack 22U/600x600 glass door, black

Reliable solutions for data and network technologies are provided by a solid welded construction with high load capacity and easy access to all installed components. Load capacity up to 800 kg allows for safe installation of even heavier equipment, while dimensions of 22U, width of 600 mm, and depth of 600 mm offer ample space for professional mounting. Glass doors made of 4mm tempered safety glass ensure visibility of the equipment while protecting the installed components.

Removable side panels and rear cover significantly facilitate installation, service, and cable management. Adjustable 19" vertical rails allow for customization of the interior space for various types of devices, while doors with an opening angle of up to 165° ensure comfortable access. The cabinet offers preparations for the installation of a ventilation unit, cable entries with knock-out plugs, and an IP20 rating. 4 mm thick tempered safety glass enhances safety and durability during everyday use.

Key features

• Height 22U (1080 mm)
• Dimensions 600 × 600 mm
• Load capacity up to 800 kg
• Welded robust construction
• IP20 rating
• Glass doors made of 4 mm tempered safety glass
• Door opening up to 165°
• Removable side panels and rear cover
• Adjustable 19" vertical rails
• Preparation for installation of a ventilation unit
• Knock-out cable entries with plugs

Package contents

• Stand cabinet
• (2) key - removable covers
• (2) key - front door
• (16) floating nuts M6
• (16) screw M6 × 12
• (16) plastic washer 6.4
• (4) leveling screw/foot for the cabinet
• (4) nut M10
• Dust plug
• Edge trim 1 m
