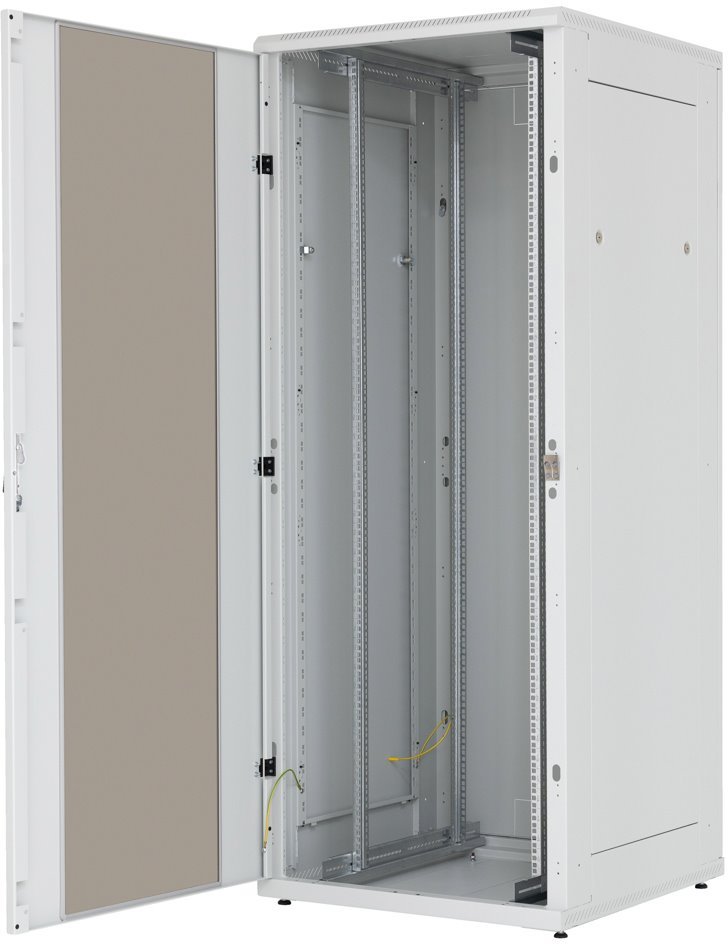

Triton 19" standing rack 22U/800x800 glass door, grey

A reliable solution for data and network technologies offers a solid welded construction with high load capacity and easy access to all installed components. Load capacity up to 800 kg allows for safe installation of even heavier equipment, while dimensions of 22U, width of 800 mm, and depth of 800 mm provide ample space for professional assembly. Glazed doors made of 4mm tempered safety glass ensure visibility of the equipment while also protecting the installed components.

Removable side panels and rear cover significantly facilitate installation, service, and cable management. Adjustable 19" vertical rails allow for customization of the internal space for different types of devices, while doors with an opening angle of up to 165° ensure convenient access. The cabinet is prepared for the installation of a ventilation unit, cable entries with knock-out blanks, and has an IP20 rating. 4 mm thick tempered safety glass enhances security and durability in everyday use.

Key Features

• Height 2U (1080 mm)
• Dimensions 800 × 800 mm
• Load capacity up to 800 kg
• Welded robust construction
• IP20 rating
• Glazed doors made of 4 mm tempered safety glass
• Door opening up to 165°
• Removable side panels and rear cover
• Adjustable 19" vertical rails
• Preparation for the installation of a ventilation unit
• Knock-out cable entries with blanks

Package Contents

• Stand cabinet
• (2) key - removable covers
• (2) key - front doors
• (16) floating nuts M6
• (16) screw M6 × 12
• (16) plastic washer 6.4
• (4) leveling screw/foot for the cabinet
• (4) nut M10
• Dust cover
• Edge trim 1 m
