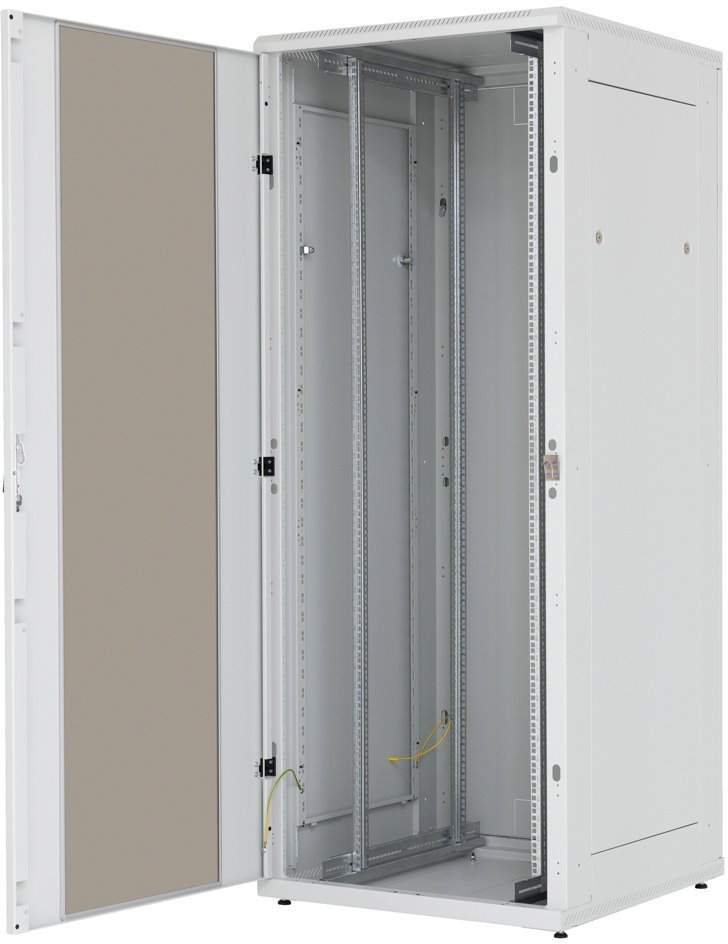

Triton 19" standing rack 22U/800x900 glass door, grey

A reliable solution for data and network technologies offers a solid welded construction with high load capacity and easy access to all installed components. Load capacity up to 800 kg allows safe installation of even heavier equipment, while the dimensions of 22U, width 800 mm, and depth 900 mm provide ample space for professional mounting. Glazed doors made of 4 mm tempered safety glass ensure visibility of the equipment while protecting the installed components.

Removable side panels and rear cover significantly facilitate installation, maintenance, and cable organization. Adjustable 19" vertical rails allow customization of the internal space for different types of equipment, while doors with an opening angle of up to 165° provide convenient access. The cabinet offers preparation for the installation of a ventilation unit, cable entries with knock-out seals, and IP20 protection. 4 mm thick tempered safety glass increases safety and durability during everyday use.

Key Features

• Height 22U (1080 mm)
• Dimensions 800 × 900 mm
• Load capacity up to 800 kg
• Welded sturdy construction
• IP20 protection
• Glazed doors made of 4 mm tempered safety glass
• Door opening up to 165°
• Removable side panels and rear cover
• Adjustable 19" vertical rails
• Preparation for installation of a ventilation unit
• Knock-out cable entries with seals

Package Contents

• Rack cabinet
• (2) keys - removable covers
• (2) keys - front doors
• (16) floating nuts M6
• (16) screws M6 × 12
• (16) plastic washers 6.4
• (4) leveling screw/leg for cabinet
• (4) nuts M10
• Dust cover
• Edge trim 1 m
