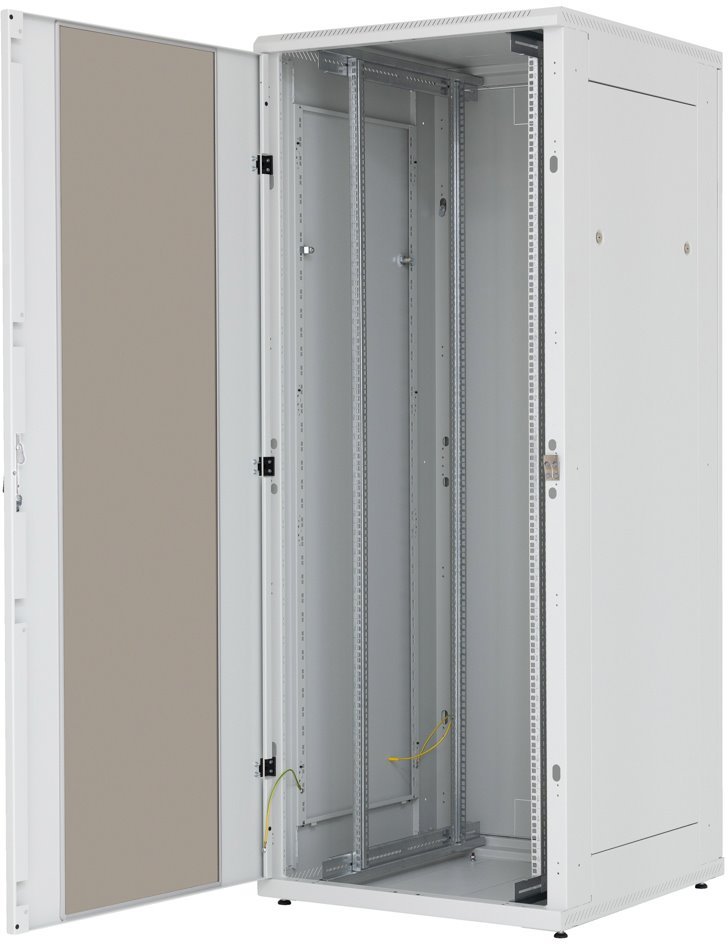

Triton 19" standing rack 27U/800x800 glass door, grey

A reliable solution for data and network technologies offers a sturdy welded construction with high load capacity and easy access to all installed components. Load capacity of up to 800 kg allows for safe installation of heavier equipment, while the dimensions of 27U, a width of 800 mm, and a depth of 800 mm provide ample space for professional assembly. The glazed doors made of 4mm tempered safety glass ensure visibility of the equipment while also protecting the installed components.

Removable side panels and rear cover significantly simplify installation, maintenance, and cable management. Adjustable 19" vertical rails allow for the adaptation of the internal space to various types of devices, while doors with an opening angle of up to 165° ensure convenient access. The cabinet offers provisions for the installation of a ventilation unit, cable entries with knock-out blanks, and an IP20 rating. 4 mm thick tempered safety glass enhances safety and durability during everyday use.

Key Features

• Height 27U (1300 mm)
• Dimensions 800 × 800 mm
• Load capacity of up to 800 kg
• Welded sturdy construction
• IP20 rating
• Glazed doors made of 4 mm toughened safety glass
• Door opening up to 165°
• Removable side panels and rear cover
• Adjustable 19" vertical rails
• Provisions for installing a ventilation unit
• Knock-out cable entries with blanks

Package Contents

• Floor-standing cabinet
• (2) key - removable covers
• (2) key - front doors
• (16) floating nuts M6
• (16) screw M6 × 12
• (16) plastic washer 6.4
• (4) leveling screw/leg for the cabinet
• (4) nut M10
• Dust-proof blanking plug
• Edge trim 1 m
