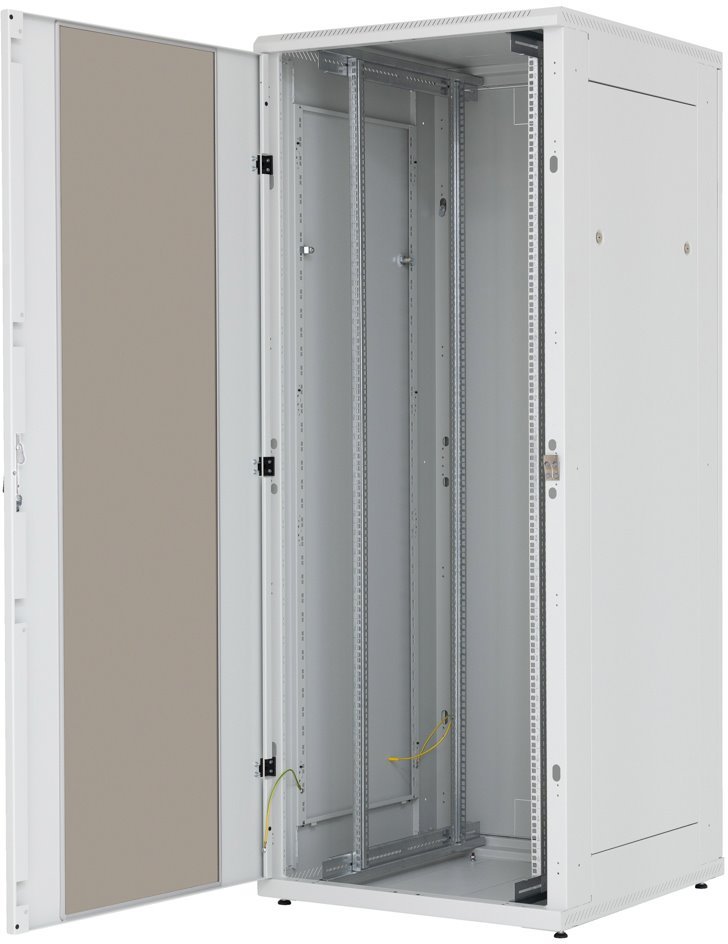

Triton 19" standing rack 27U/800x900 glass door, grey

Reliable solutions for data and network technologies are provided by a solid welded construction with high load capacity and easy accessibility to all installed components. Load capacity up to 800 kg allows safe installation of even heavier equipment, while the dimensions of 27U, width of 800 mm, and depth of 900 mm provide enough space for professional installation. Glazed doors made of 4mm tempered safety glass ensure visibility of the equipment while protecting the installed components.

Removable side panels and rear cover significantly simplify installation, service, and cable organization. Adjustable 19" vertical rails allow adaptation of the internal space for various types of devices, while doors with an opening angle of up to 165° ensure convenient access. The cabinet offers preparation for the installation of a ventilation unit, cable entries with knock-out covers, and an IP20 rating. 4 mm thick tempered safety glass enhances safety and durability in everyday use.

Key Features

• Height 27U (1300 mm)
• Dimensions 800 × 900 mm
• Load capacity up to 800 kg
• Welded robust construction
• IP20 rating
• Glazed doors made of 4 mm tempered safety glass
• Door opening up to 165°
• Removable side panels and rear cover
• Adjustable 19" vertical rails
• Preparation for the installation of a ventilation unit
• Knock-out cable entries with covers

Package Contents

• Rackmount cabinet
• (2) key - removable covers
• (2) key - front doors
• (16) floating nuts M6
• (16) screw M6 × 12
• (16) plastic washer 6.4
• (4) leveling screw/foot for the cabinet
• (4) nuts M10
• Dustproof cover
• Edge trim 1 m
