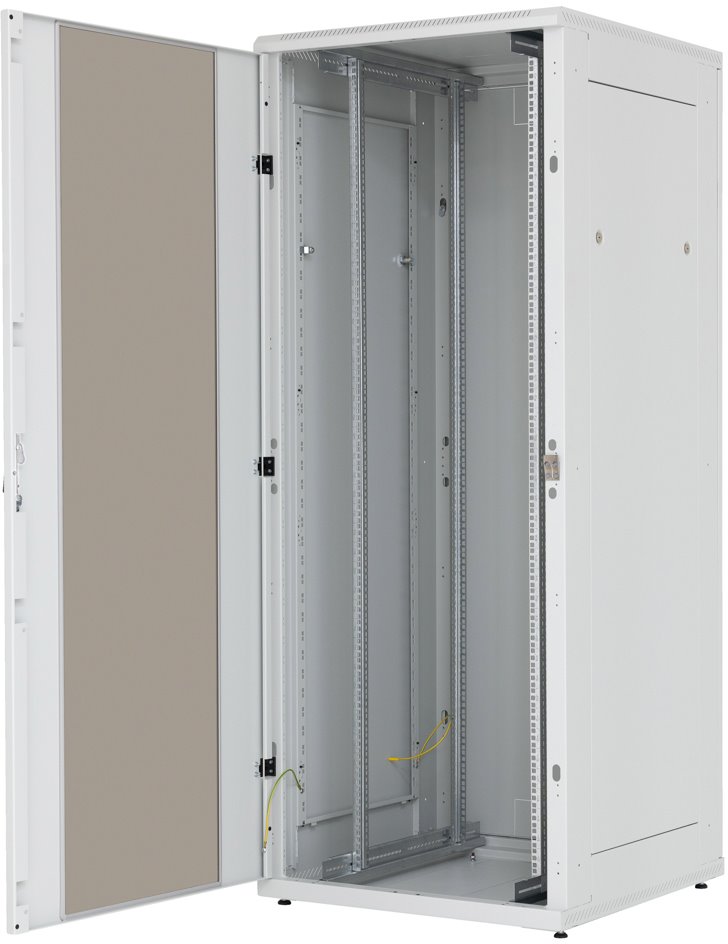

Triton 19" standing rack 32U/800x1200 glass door, grey

A reliable solution for data and network technologies offers a sturdy welded construction with high load capacity and easy access to all installed components. Load capacity of up to 800 kg allows for the safe installation of heavier equipment, while the dimensions of 32U, width of 800 mm, and depth of 1200 mm provide ample space for professional mounting. The glass doors made of 4 mm tempered safety glass ensure visibility of the equipment while protecting the installed components.

Removable side panels and rear cover significantly facilitate installation, servicing, and cable management. Adjustable 19" vertical rails allow for customization of the interior space for various types of devices, while doors that open up to 165° ensure convenient access. The enclosure features preparation for mounting a ventilation unit, cable entries with knock-out plugs, and an IP20 rating. 4 mm thick tempered safety glass enhances safety and durability during everyday use.

Key features

• Height 32U (1525 mm)
• Dimensions 800 ×1200 mm
• Load capacity of up to 800 kg
• Welded robust construction
• IP20 rating
• Glass doors made of 4 mm tempered safety glass
• Door opening of up to 165°
• Removable side panels and rear cover
• Adjustable 19" vertical rails
• Preparation for mounting a ventilation unit
• Knock-out cable entries with plugs

Package contents

• Floor standing enclosure
• (2) key - removable covers
• (2) key - front doors
• (16) floating nuts M6
• (16) screw M6 × 12
• (16) plastic washer 6.4
• (4) leveling screw/foot for the enclosure
• (4) nut M10
• Dust cover
• Edge trim 1 m
