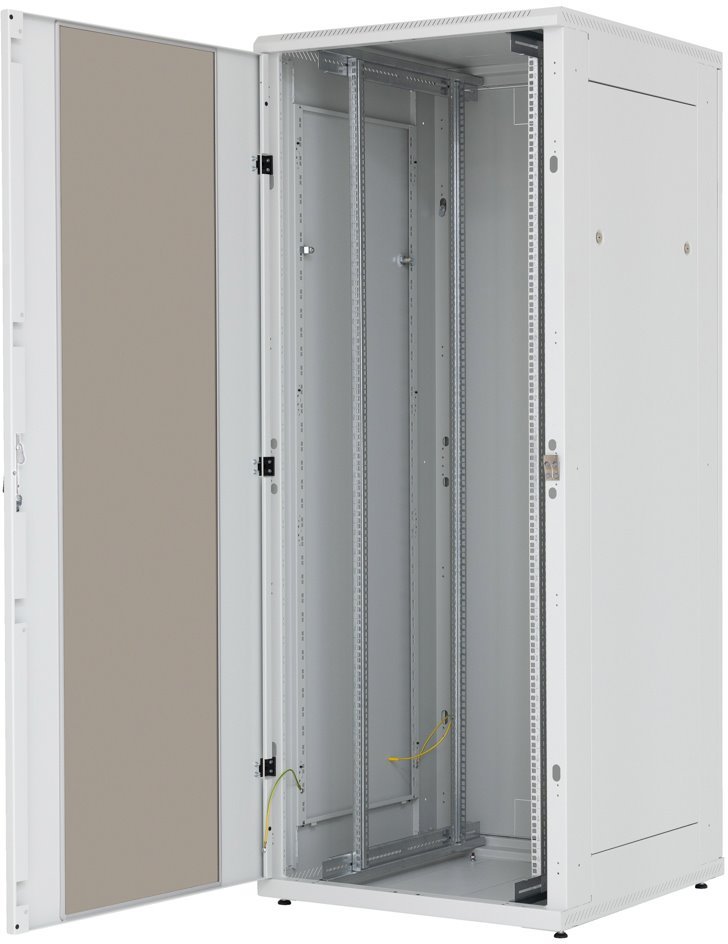

Triton 19" standing rack 32U/800x900 glass door, grey

A reliable solution for data and network technologies offers a solid welded construction with high load capacity and easy access to all installed components. Load capacity of up to 800 kg allows for safe installation of even heavier equipment, while the dimensions of 32U, width of 800 mm, and depth of 900 mm provide ample space for professional mounting. Glazed doors made of 4mm tempered safety glass ensure visibility of the equipment while protecting the installed components.

Removable side panels and rear cover significantly facilitate installation, servicing, and cable organization. Adjustable 19" vertical rails allow adapting the interior space for various types of equipment, while doors with an opening angle of up to 165° ensure comfortable access. The cabinet offers preparation for mounting a ventilation unit, cable entries with break-out grommets, and IP20 protection. Tempered safety glass with a thickness of 4 mm increases safety and durability during everyday use.

Key Features

• Height 32U (1525 mm)
• Dimensions 800 × 900 mm
• Load capacity of up to 800 kg
• Welded robust construction
• IP20 protection
• Glazed doors made of 4 mm tempered safety glass
• Door opening of up to 165°
• Removable side panels and rear cover
• Adjustable 19" vertical rails
• Preparation for mounting a ventilation unit
• Break-out cable entries with grommets

Package Contents

• Rack cabinet
• (2) key - removable covers
• (2) key - front doors
• (16) floating nuts M6
• (16) screw M6 × 12
• (16) plastic washer 6.4
• (4) leveling screw/foot for the cabinet
• (4) nut M10
• Dust cover
• Edge trim 1 m
