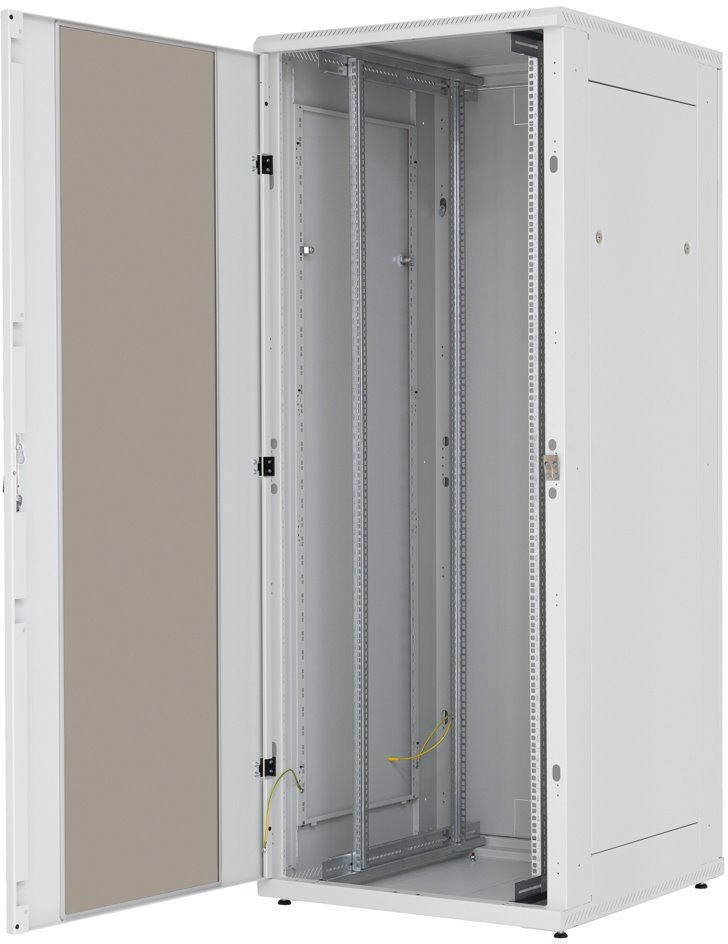

Triton 19" standing rack 37U/800x800 glass door, grey

A reliable solution for data and network technologies offers a solid welded construction with high load capacity and easy access to all installed elements. Load capacity up to 800 kg allows for the safe installation of heavier equipment, while dimensions of 37U, a width of 800 mm, and a depth of 800 mm provide ample space for professional installation. Glazed doors made of 4mm tempered safety glass ensure visibility of the equipment while protecting the installed components.

Removable side panels and rear cover significantly facilitate installation, maintenance, and cable organization. Adjustable 19" vertical rails allow for customization of the internal space for various types of devices, while doors with an opening angle of up to 165° provide comfortable access. The cabinet offers preparation for the installation of a ventilation unit, cable entries with knock-out plugs, and an IP20 rating. Tempered safety glass with a thickness of 4 mm enhances safety and durability during everyday use.

Key Features

• Height 37U (1750 mm)
• Dimensions 800 × 800 mm
• Load capacity up to 800 kg
• Welded robust construction
• IP20 rating
• Glazed doors made of 4 mm tempered safety glass
• Door opening up to 165°
• Removable side panels and rear cover
• Adjustable 19" vertical rails
• Preparation for the installation of a ventilation unit
• Knock-out cable entries with plugs

Package Contents

• Floor-mounted cabinet
• (2) key - removable covers
• (2) key - front doors
• (16) floating nuts M6
• (16) screw M6 × 12
• (16) plastic washer 6.4
• (4) leveling screw/foot for the cabinet
• (4) nut M10
• Dust cover plug
• Edge trim 1 m
