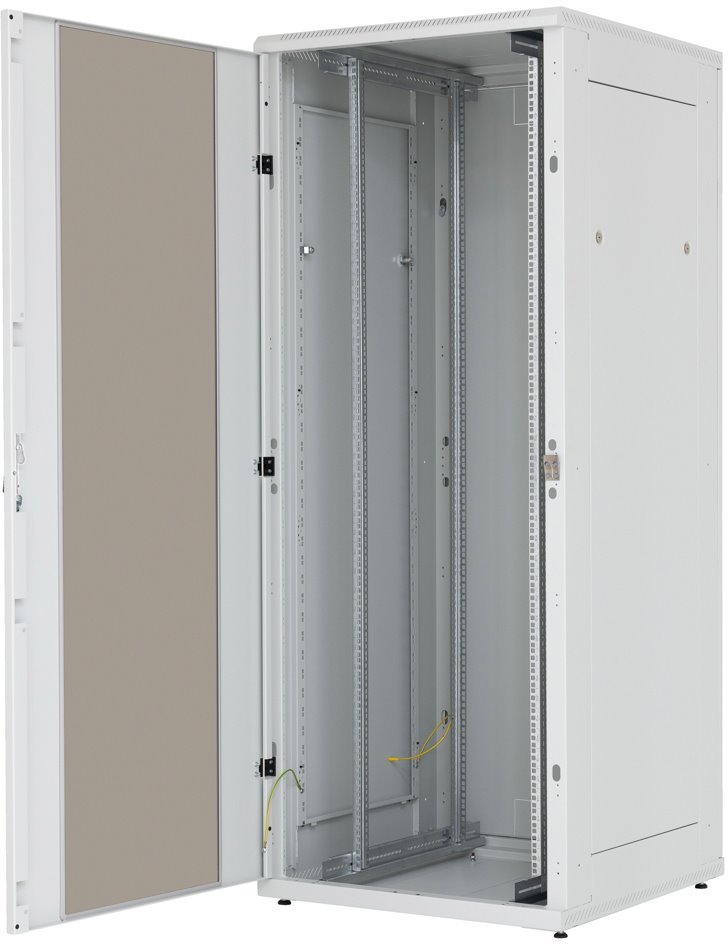

Triton 19" standing rack 42U/600x800 glass door, grey

Reliable solutions for data and network technologies are provided by a solid welded construction with high load capacity and easy access to all installed components. Load capacity up to 800 kg allows for safe installation of heavier equipment, while the dimensions of 42U, a width of 600 mm, and a depth of 800 mm provide ample space for professional mounting. Glass doors made of 4mm tempered safety glass ensure visibility of the equipment while also protecting the installed components.

Removable side panels and rear cover significantly simplify installation, service, and cable management. Adjustable 19" vertical rails allow for customization of the interior space for various types of devices, while doors with an opening angle of up to 165° ensure comfortable access. The cabinet offers provisions for mounting a ventilation unit, cable entries with knock-out plugs, and IP20 protection. 4 mm tempered safety glass enhances safety and durability during everyday use.

Key features

• Height 42U (1970 mm)
• Dimensions 600 × 800 mm
• Load capacity up to 800 kg
• Welded robust construction
• IP20 protection
• Glass doors made of 4 mm tempered safety glass
• Door opening up to 165°
• Removable side panels and rear cover
• Adjustable 19" vertical rails
• Preparation for mounting a ventilation unit
• Knock-out cable entries with plugs

Package contents

• Rack cabinet
• (2) key - removable covers
• (2) key - front doors
• (16) floating nuts M6
• (16) screw M6 × 12
• (16) plastic washer 6.4
• (4) leveling screw/foot for the cabinet
• (4) nut M10
• Dust cover
• Edge trim 1 m
