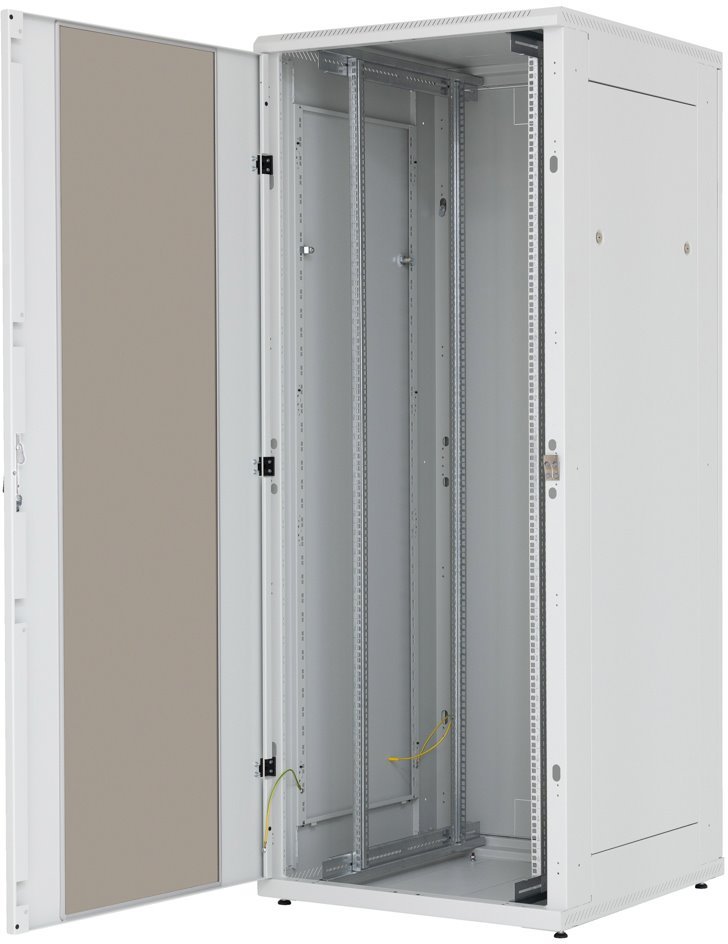

Triton 19" standing rack 45U/800x800 glass door, grey

A reliable solution for data and network technologies offers a solid welded construction with high load capacity and easy accessibility to all installed components. Load capacity of up to 800 kg allows for the safe installation of heavier equipment, while the dimensions of 45U, width of 800 mm and depth of 800 mm provide ample space for professional installation. Glazed doors made of 4mm tempered safety glass ensure visibility of the equipment while protecting the installed components.

Removable side panels and rear cover significantly facilitate installation, maintenance, and cable organization. Adjustable 19" vertical rails allow for customization of the internal space for various types of devices, while doors with an opening angle of up to 165° ensure convenient access. The cabinet offers preparation for the installation of a ventilation unit, cable entries with knockout caps, and an IP20 rating. 4 mm thick tempered safety glass increases safety and durability during everyday use.

Key Features

• Height 45U (2105 mm)
• Dimensions 800 × 800 mm
• Load capacity of up to 800 kg
• Welded robust construction
• IP20 rating
• Glazed doors made of 4 mm tempered safety glass
• Door opening up to 165°
• Removable side panels and rear cover
• Adjustable 19" vertical rails
• Preparation for the installation of a ventilation unit
• Knockout cable entries with caps

Package Contents

• Rack cabinet
• (2) key - removable covers
• (2) key - front doors
• (16) floating nuts M6
• (16) screw M6 × 12
• (16) plastic washer 6.4
• (4) leveling screw/foot for the cabinet
• (4) nut M10
• Dust protection cap
• Edge trim 1 m
