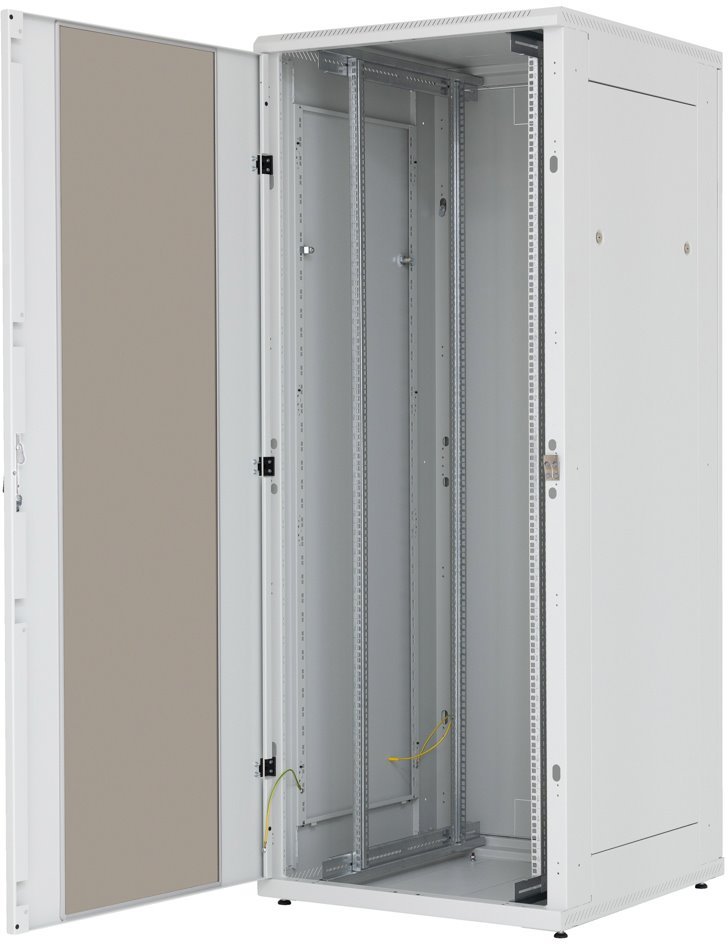

Triton 19" standing rack 45U/800x900 glass door, grey

A reliable solution for data and network technologies offers a solid welded construction with high load capacity and easy accessibility to all installed components. Load capacity of up to 800 kg allows for safe installation of heavier equipment, while the dimensions of 45U, width of 800 mm and depth of 900 mm provide ample space for professional assembly. The glazed doors made of 4mm tempered safety glass ensure visibility of the equipment while also protecting the installed components.

Removable side panels and rear cover significantly facilitate installation, servicing, and cable management. Adjustable 19" vertical rails allow for customization of the interior space for different types of devices, while doors with an opening angle of up to 165° ensure convenient access. The cabinet offers preparation for the installation of a ventilation unit, cable entries with knock-out covers, and an IP20 rating. 4 mm thick tempered safety glass increases safety and durability during everyday use.

Key features

• Height 45U (2105 mm)
• Dimensions 800 × 900 mm
• Load capacity of up to 800 kg
• Welded robust construction
• IP20 rating
• Glazed doors made of 4 mm tempered safety glass
• Door opening of up to 165°
• Removable side panels and rear cover
• Adjustable 19" vertical rails
• Preparation for the installation of a ventilation unit
• Knock-out cable entries with covers

Contents of the package

• Rack cabinet
• (2) key - removable covers
• (2) key - front doors
• (16) floating nuts M6
• (16) screw M6 × 12
• (16) plastic washer 6.4
• (4) leveling screw/foot for the cabinet
• (4) nut M10
• Dust-proof cover
• Edge trim 1 m
