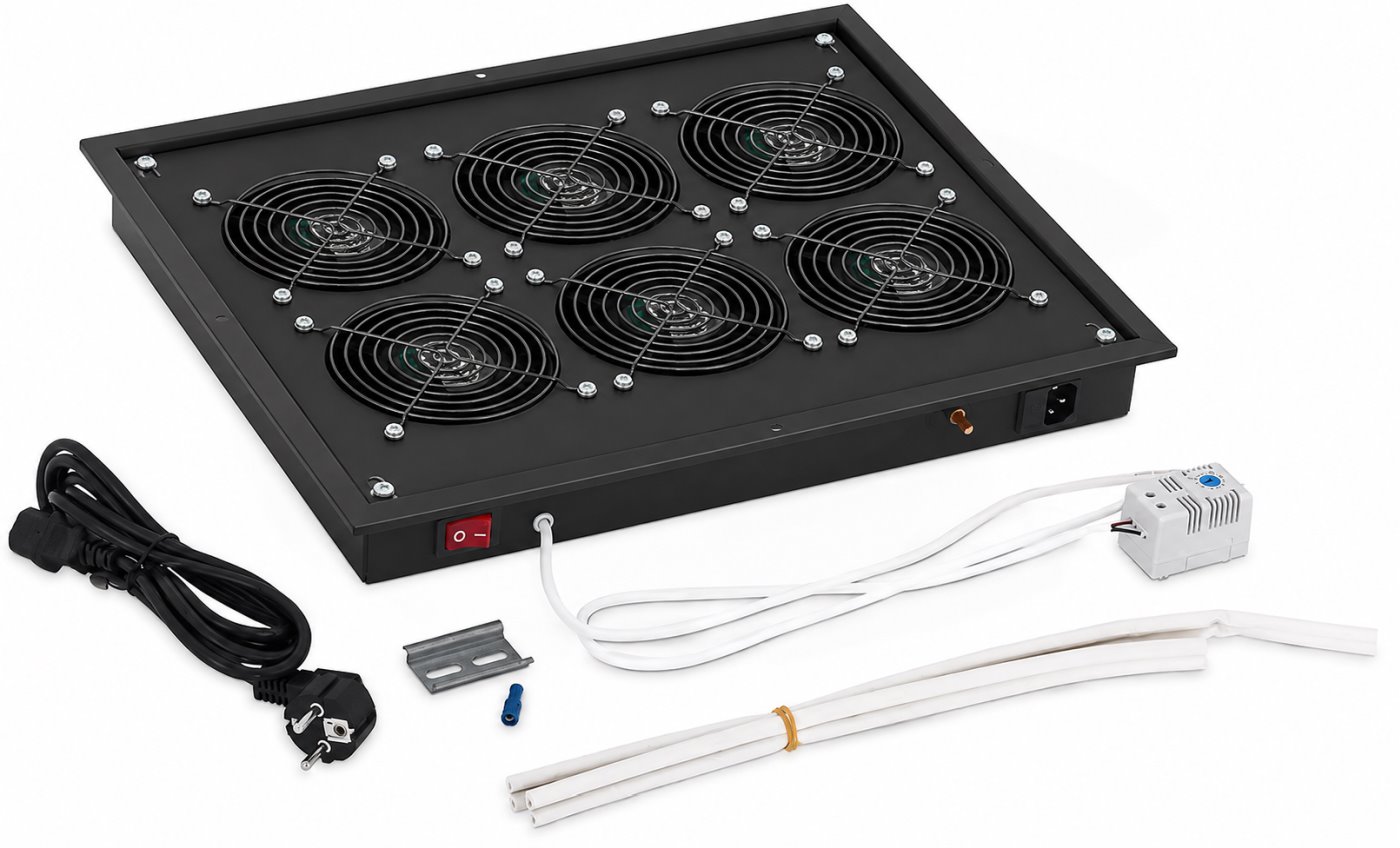

Triton ventilation unit with thermostat RAB-CH-X05-X3, 230V/90W, 6 fans, black

The ventilation horizontal unit is designed for 19" rack-mounted enclosures. The unit includes a bimetal thermostat for setting the temperature range and a set of six 120 mm fans with a total maximum output of 90 W. They are installed as needed in the floor, top, or doors of the enclosures.

When installing in the base of the enclosure, it is necessary to use the mounting frame for the lower ventilation unit – RAx-CH-X05-X3, which is installed using double-sided adhesive tape.

Key Features

• Fan: 6x 120 mm
• Placement: Bottom / Top
• Thermostat: Bimetal
• Cable type: 3 x 1.5 mm
• Color: Black
• Power consumption: 136 W
• Max. output: 90 W
• Power supply: 100 - 240V
• Noise level: 61.4 dB
• Airflow: 159.9 m3/h
