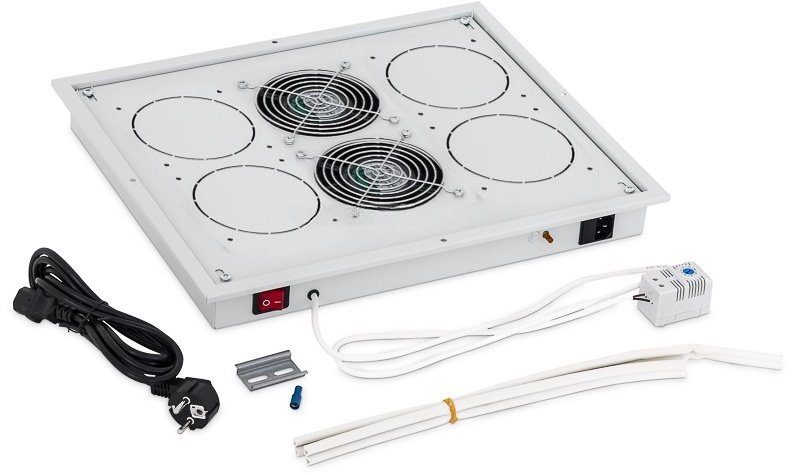

Triton ventilation unit with thermostat RAC-CH-X03-X3, 230V/30W, 2x fans, gray

The horizontal ventilation unit is designed for 19" rack cabinets. The unit includes a bimetal thermostat for setting the temperature range and two 120 mm fans with a total maximum power of 30 W. They are installed as needed in the floor, top, or doors of the cabinets.

When installing in the base of the cabinet, it is necessary to use the installation frame for the lower ventilation unit – RAx-CH-X03-X3, which is installed using double-sided adhesive tape.

Key Features

• Fan: 2x 120 mm
• Placement: Bottom / Top
• Thermostat: Bimetal
• Cable type: 3 x 1.5 mm
• Color: Gray
• Power consumption: 46 W
• Max. power: 30 W
• Power supply: 100 - 240V
• Noise level: 57.8 dB
• Airflow: 109.2 m3/h
