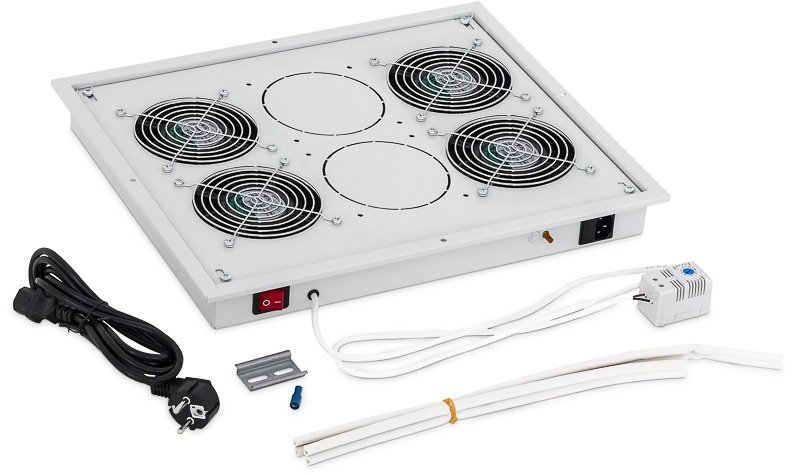

Triton ventilation unit with thermostat RAC-CH-X04-X3, 230V/60W, 4 fans, gray

The ventilation horizontal unit is designed for 19" rack-mounted enclosures. The unit includes a bimetal thermostat for temperature range adjustment and four 120 mm fans with a total maximum power of 60 W. They can be installed as needed in the floor, top, or doors of the enclosures.

When installed in the base of the enclosure, it is necessary to use the mounting frame for the bottom ventilation unit – RAx-CH-X04-X3, which is installed using double-sided adhesive tape.

Key features

• Fan: 4x 120 mm
• Placement: Bottom / Top
• Thermostat: Bimetal
• Cable type: 3 x 1.5 mm
• Color: Gray
• Power consumption: 92 W
• Max. power: 60 W
• Power supply: 100 - 240V
• Noise level: 59.9 dB
• Airflow: 139.2 m3/h
