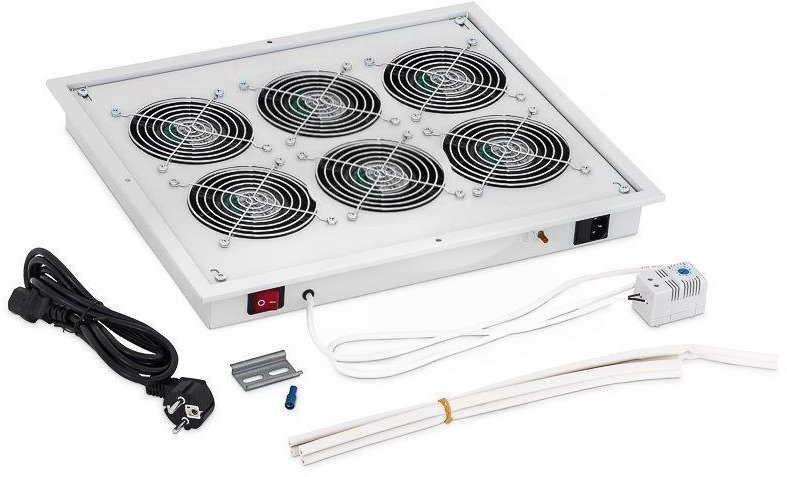

Triton ventilation unit with thermostat RAC-CH-X05-X3, 230V/90W, 6 fans, gray

The ventilation horizontal unit is designed for 19" rack cabinets. The unit includes a bimetallic thermostat for temperature range setting and a set of six 120 mm fans with a total maximum output of 90 W. They can be installed as needed in the floor, top or doors of the cabinets.

When installing in the base of the cabinet, it is necessary to use the mounting frame for the lower ventilation unit – RAx-CH-X05-X3, which is installed using double-sided adhesive tape.

Key features

• Fan: 6x 120 mm
• Placement: Bottom / Top
• Thermostat: Bimetallic
• Cable type: 3 x 1.5 mm
• Color: Gray
• Power consumption: 136 W
• Max. output: 90 W
• Power supply: 100 - 240V
• Noise level: 61.4 dB
• Airflow: 159.9 m3/h
