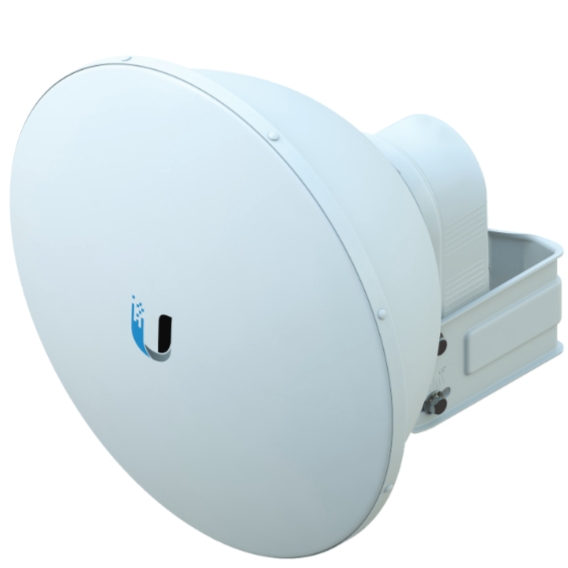

Ubiquiti airFiber Dish 23dBi, 5GHz, Slant 45

We would like to introduce to you a revolutionary 5GHz antenna marked AF-5G23-S45 with dual X polarization rotated by 45° compared to the standard dual H-V polarization, making it more durable in disturbed environment than ever before. This 23dBi antenna with a diameter of 378mm is custom made for direct pairing with the AF-5X product.

Improved anti-jamming design

Using an innovative design, improved RF isolation and reduced interference were achieved. Thanks to this, a higher capacity of your connections can be achieved.

Built-in Rocket kit

Thanks to the built-in mounting system of the so-called rocket kit, it is possible to directly mount any Rocket unit on this antenna without the need to install additional accessories. Simply snap the Rocket unit in place and you're done. For proper functionality, this antenna is primarily intended for airFiber X units thanks to its 45° rotated polarization.

Package contents

• Antenna
• Protective cover
• (2) RSMA male - RSMA male pigtail
• Mounting bracket + screws
