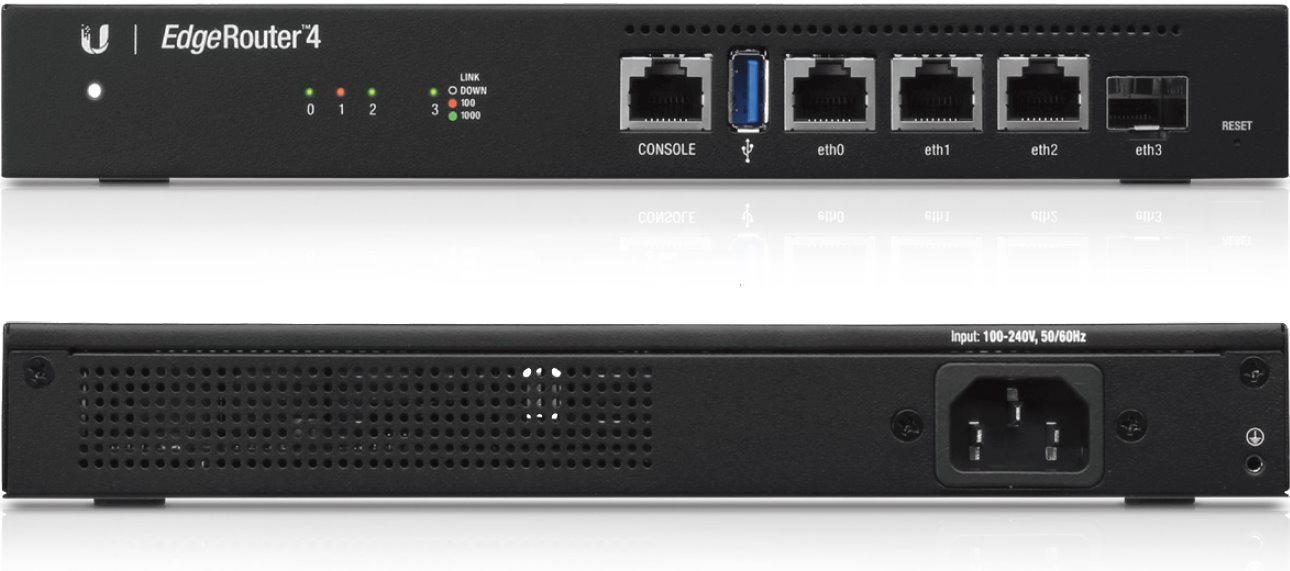

Ubiquiti ER-4 EdgeRouter 4

EdgeRouter 4 from Ubiquiti Networks is a desktop router equipped with 3 Gigabit Ethernet ports with 802.1q VLAN support, 1x SFP, 1GB DDR3 operation memory, 4GB flash storage and 1x USB 3.0. EdgeOS ™, which is included and installed in the router is extremely efficient and stable operating system that supports IPv6, routing protocols OSPF and BGP, firewall and very popular VPN service.

Management

The intuitive, graphical user interface is easy to learn and makes routing features simple to configure and monitor. It includes an integrated Command-Line Interface (CLI) for convenient access to advanced functions. The EdgeRouter 4 is also supported and managed by UNMS (Ubiquiti® Network Management System), a comprehensive controller with an intuitive UI. A single control plane manages registered EdgeMAX® devices across multiple sites.

Software specifications

• VLAN 802.1q
• Static and dynamic routing (OSPF, RIP, BGP)
• VPN: IPsec, OpenVPN, PPTP, L2TP, PPTP)
• DHCP client and server
• Firewall (ACL-Based, Zone-Based) and NAT
• Dynamic DNS, DNS forwarding, DHCP relay, VRRP, RADIUS Client
• Management and monitoring
• Management: Web, Telnet, SSH, SNMP
• IPv6 and IPv4 protocols support
• QoS

High performance

Powerful Routing Performance - The EdgeRouter 4 routes up to 3.4 million packets per second to meet the needs of carrier-class networks.

Package contains

• Device
• Power cord
• Screws
