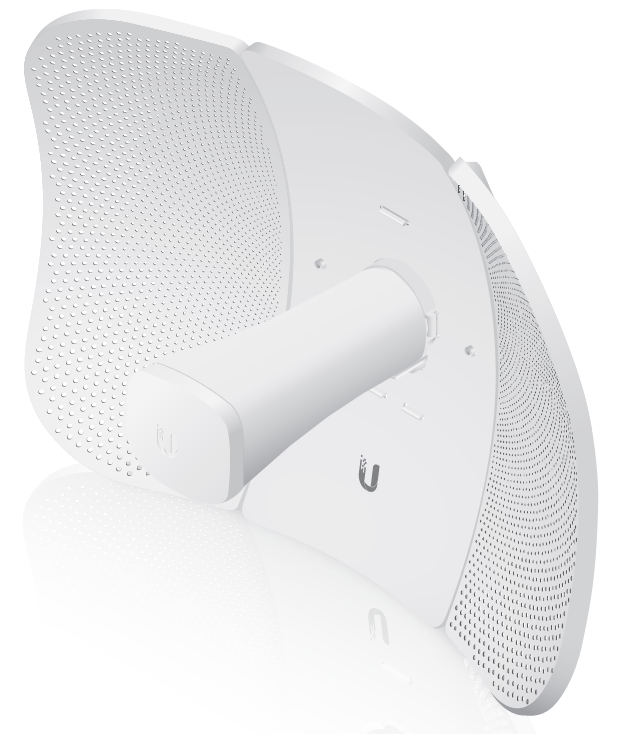

Ubiquiti LiteBeam 5AC Gen2

LiteBeam 5AC-Gen2 is a 2x2 MIMO client station of the AC series for the 5GHz band with an antenna gain of 23dBi, which reaches transmission speeds of up to 867 Mbps. The unit is compatible only with other airMAX AC products and is intended for outdoor use with the best price/performance ratio in the 5GHz band.

Inside the LiteBeam there is a powerful MIPS processor Atheros 74KC, which is supported by 64MB of operating memory. The network port supports 10/100/1000 Ethernet and the unit can be powered via the passive Gigabit PoE 24V/0.3A adapter included in the package (active PoE according to 802.3af is not supported).

airMAX TDMA

LiteBeam 5AC-Gen2 combines proprietary hardware and software technologies into a cost-effective device. Benefits include InnerFeed technology, airMAX TDMA protocol, improved holder and built-in spirit level for very quick and correct deployment, as well as very compact dimensions to save on shipping costs.

Management via the uMobile application

Technicians will certainly appreciate the newly included 2.4GHz WiFi interface, which is used for administration via a mobile device. The UMOBILE app is available for both Android and iOS.

Package contents

• Device
• Antenna
• Antenna holder
• PoE power supply 24V/0.3A
• Power cord
• Metal drawstring
