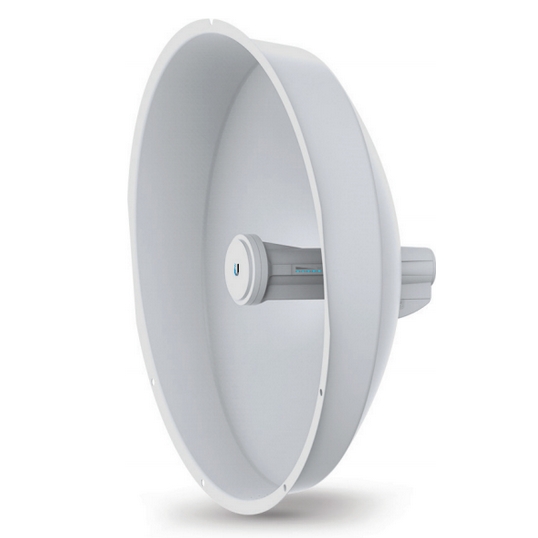

Ubiquiti PowerBeam M5 ISO 300

PBE-M5-300-ISO is a suitable device for PtP connections with an antenna gain of 22dBi from the M5 series, which achieves very high transmission rates and a stable connection even in noisy environments. It is fully compatible with older products from the M5 series and is of course intended for outdoor use. Thanks to the possible setting of the channel width 5/8/10/20/30 and 40MHz, a real throughput of up to 150Mbps+...

Inside the PowerBeam is a powerful MIPS processor Atheros 74KC with a frequency of 560MHz, which is supported by 64MB of DDR2 operating memory and 8MB of Flash memory. The network port supports 10/100 Ethernet and the unit can be powered via the passive PoE 24V/0.5A adapter included in the package (active PoE according to 802.3af is not supported).

airMAX TDMA

The biggest advantage of any airMAX device is, in addition to high transmission speed thanks to the 802.11n standard, the use of TDMA time multiplex. The TDMA airMAX protocol enables excellent scalability and high throughput while maintaining low latencies in PtMP networks.

Package contents

• Device
• Parabola
• PoE power supply
• Power cord
• Plastic part for attaching the radiator
• Holder
• Radom cover
