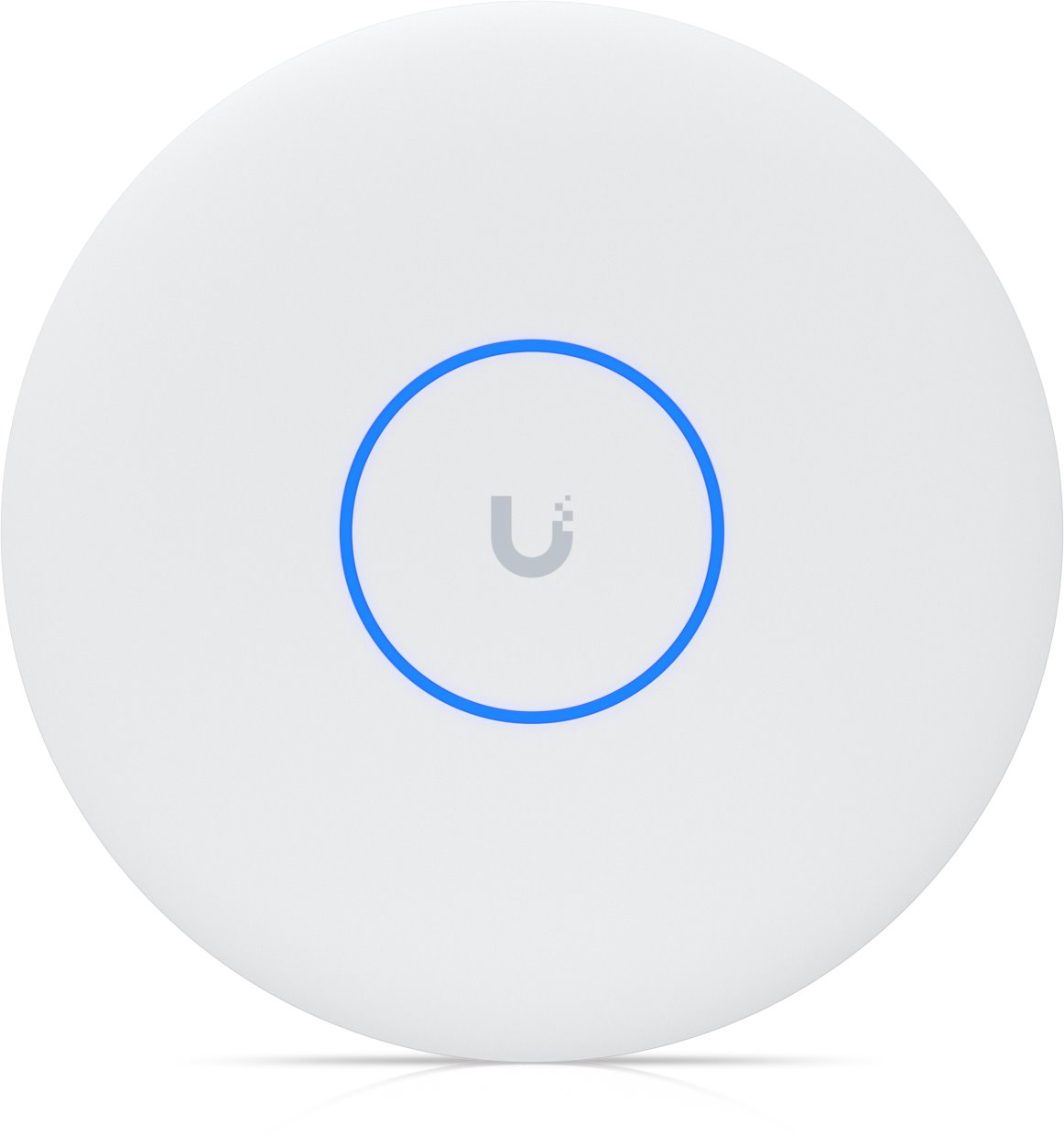

Ubiquiti U7-Pro-XGS, UniFi U7 Pro XGS Access Point

The UniFi Access Point U7 Pro XGS is a high-performance Triple-band Wi-Fi 7 Access Point (2.4 GHz, 5 GHz, and 6 GHz), making it an ideal AP for high-traffic environments such as halls, warehouses, and offices. The U7-Pro-XGS delivers exceptional throughput – up to 8.6 Gbps on the 5 GHz band (4x4 MU-MIMO, 240 MHz), 5.8 Gbps on the 6 GHz band (2x2 MU-MIMO, 320 MHz), and 688 Mbps on the 2.4 GHz band (2x2 MIMO, 40 MHz), supporting more than 500 simultaneous clients. The Access Point features a 10-Gigabit Ethernet port with support for both active PoE (802.3bt) and passive 44-57V PoE.

Key Features

• Triple-band Wi-Fi 7, supporting 802.11a/b/g/n/ac/ax/be
• 5 GHz throughput up to 8.6 Gbps (4x4 MU-MIMO)
• 6 GHz throughput up to 5.8 Gbps (2x2 MU-MIMO)
• 2.4 GHz throughput up to 688 Mbps (2x2 MIMO)
• Antenna gain - 2.4 GHz (4 dBi), 5 GHz (6 dBi), and 6 GHz (6 dBi)
• WPA / WPA2 / WPA3 encryption
• 10-Gigabit LAN port
• Powered via 802.3bt or passive 42-57V PoE, power consumption 29 W
• Manageable via the UniFi Network application

Centralized Unit Management

To manage the device, download the official UniFi Network Controller software from the official website. This software allows full network control. A key advantage of the UniFi Network is that it is completely free with no limitations! This central management system enables users to upload maps and configure both basic and advanced features such as SSID, guest accounts, a captive portal, traffic statistics, and a list/status of associated clients, all in a quick and user-friendly manner.

Advantages of UniFi Solutions

• Fast Roaming - seamless transition between APs
• Wireless uplink (useful where cabling is not possible)
• Supports up to 8 SSIDs
• Detailed traffic statistics
• Guest network
• Load balancing - maintains even distribution of client connections
• Speed limitation for each SSID

Package Contents

• Device
• Ceiling/wall mounting kit
• Set of screws and wall plugs
