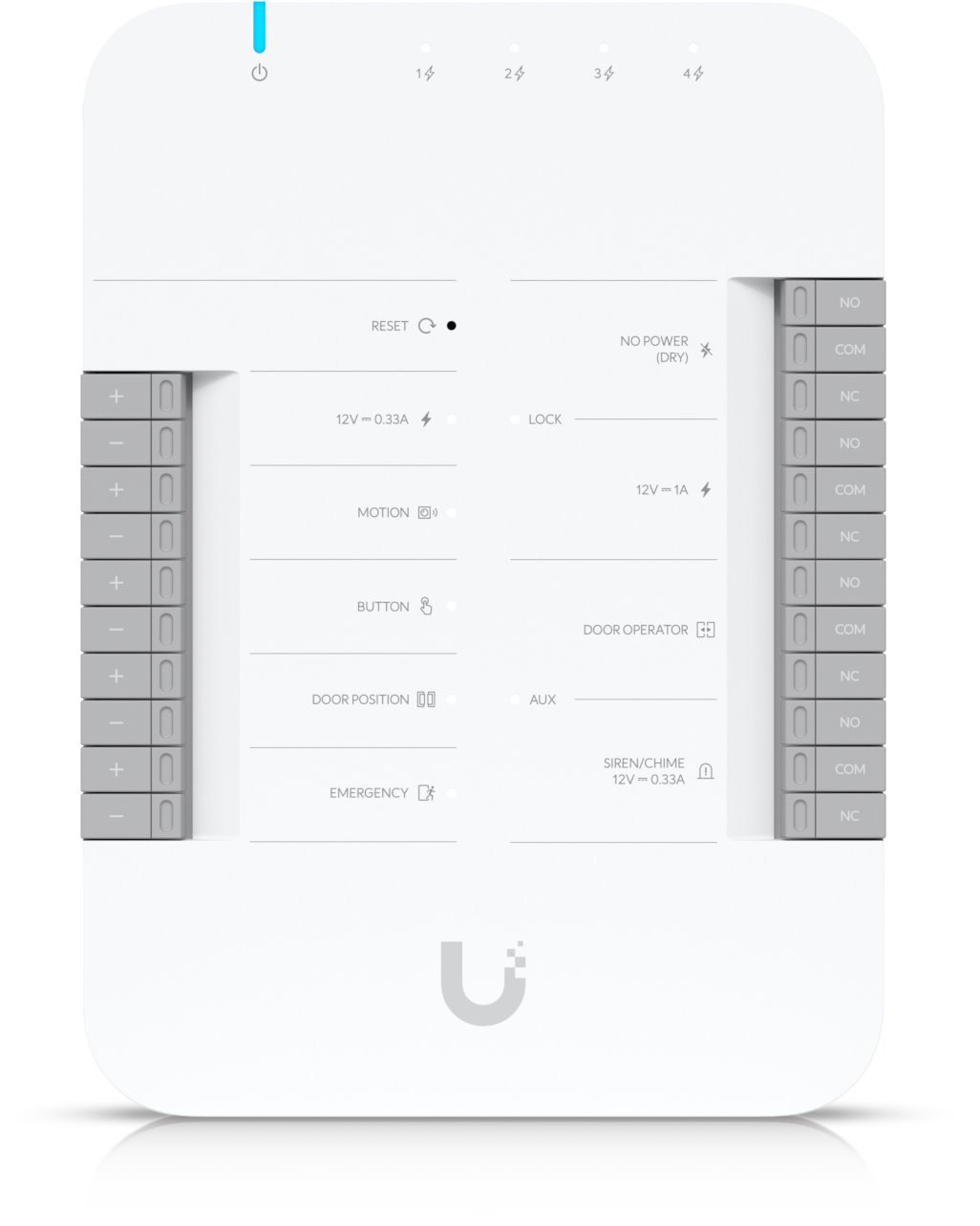

Ubiquiti UA-Hub-Door, UniFi Access Door Hub

The UniFi Access Door Hub is a core component for setting up the UniFi Access control system. The UniFi Access Hub is an intelligent IP door controller for 2 doors, compatible with most electric locks, magnetic locks, and a wide range of 12V accessories, such as motion sensors, push buttons, and alarms. Installation is fast and straightforward, offering simple user management, visitor access, schedules, levels, and permissions through the UniFi Access Controller. The hub is powered via PoE, which is not included in the package.

One of the following devices is required to operate the UNIFI ACCESS system:

• UniFi Dream Machine Special Edition
• UniFi Dream Machine Pro
• UniFi Cloud Key G2+
• Dream Router
• Dream Machine

Door Hub Interfaces

• (5) 10/100/1000 Mbps ports (4x PoE-Out - 802.3af, 1x PoE-In 802.3bt)
• PoE-Out ports for 2 readers and 2 cameras
• (1) Lock relay supporting 12V power and dry contacts
• (2) AUX relay outputs for connecting an external siren and automatic door opener
• 12V output for accessories
• (4) Inputs – exit button, motion sensor, emergency alarm, and door position sensor

Package Contents

• UniFi Access Hub
• DIN rail
• Screws
